These two elegant semi-detached bungalows both provide a 1,934 square foot living area, but their interior design is slightly different. The house on the left features a larger master bedroom with a direct access to the family bathroom, and the kitchen and its island face the inside of the house, while the house on the right has a kitchen and an island that face two horizontal windows overlooking the yard.
Both homes have a split-level entrance hall with large panoramic windows, a living room, a dining room, a bathroom with a large shower, and a laundry closet.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

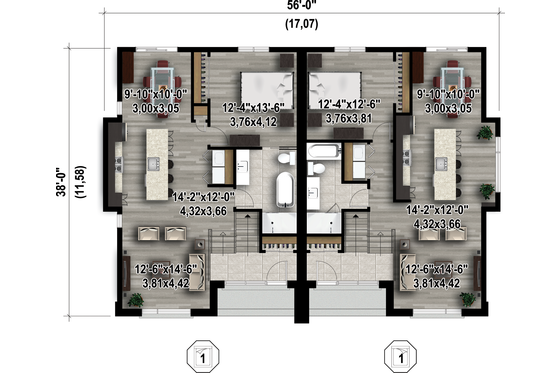

Floor Plan - Main Floor

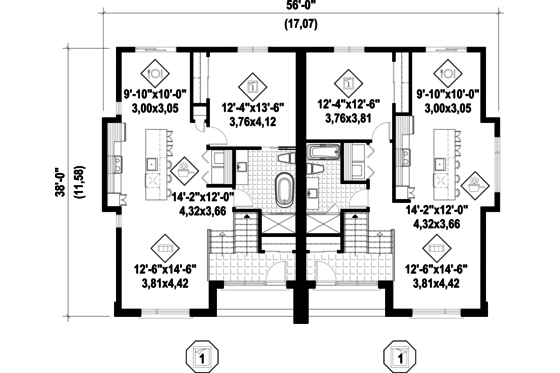

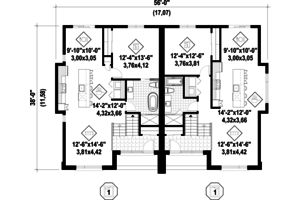

Floor Plan - Main Floor
Full Specs & Features
Depth : 38'
Height : 22' 11"
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 1934 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Siding Stone
Framing : Wood - 2 x 6
What's included in this plan set
See a sample plan set
*See important information before purchasing
Four detailed exterior elevations showing the final appearance of each side of the house.
Different isometric views with dimensions as well as relevant information to build the foundations.
A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
