Plan 23-749

Photographs may show modified designs.
Plan 23-749

Key Specs


1936
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


Special Features Two-sided fireplace, 9' ceiling on the first level, built-ins, special ceiling treatments, covered front balcony, 2 entrances at front, dual sinks in master bathroom, abundant and special fenestration. Plan Description Main level: 9' ceiling. Kitchen with island, breakfast area, living and dining rooms with see-thru fireplace, half-bath, home office. 2nd level: Master suite with private bathroom and walk-in closet, two secondary bedrooms sharing a shower room, laundry room, unfinished bonus room above garage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

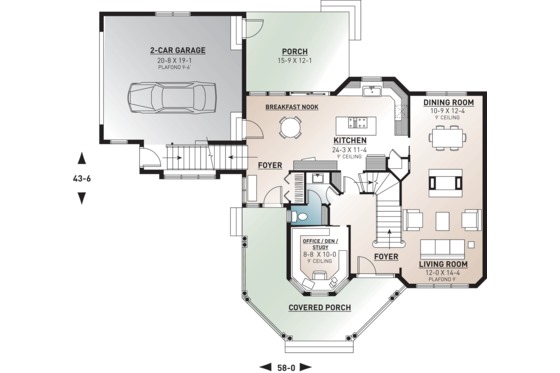

Floor Plan - Main Floor Plan

Reverse

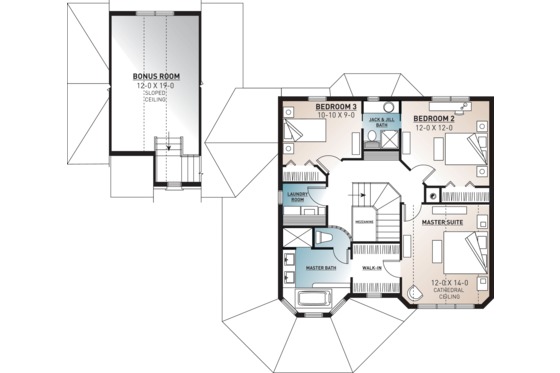

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 43' 6"
Height : 29'
Width : 58'

Area

Total : 1936 sq/ft
Bonus: 289 sq/ft
First Floor: 1044 sq/ft
Garage: 520 sq/ft
Second Floor: 892 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Play Flex Room
Storage Area
Unfinished Future Space
Upstairs Laundry

Garage Features

Rear Entry Garage
Rear Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Wrap Around Porch

Rooms

3rd BR Closet:

13 sq/ft width 6' 8" x depth 2'

Bathroom 2:

36 sq/ft width 5' 2" x depth 7'

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 2 Closet:

13 sq/ft width 6' 6" x depth 2'

Bedroom 3:

97 sq/ft width 10' 10" x depth 9'

Bedroom 3 Closet:

13 sq/ft width 6' 6" x depth 2'

Deck:

188 sq/ft width 15' 8" x depth 12'

Dining Room:

128 sq/ft width 10' 8" x depth 12'

Foyer:

25 sq/ft width 7' 3" x depth 3' 7"

Garage:

468 sq/ft width 20' 8" x depth 22' 8"

Hall Closet:

9 sq/ft width 4' 9" x depth 2'

Kitchen:

275 sq/ft width 24' 4" x depth 11' 4"

Laundry Room:

37 sq/ft width 6' 8" x depth 5' 8"

Linen Closet:

5 sq/ft width 5' 2" x depth 1'

Living Room:

168 sq/ft width 12' x depth 14'

Master Bathroom:

104 sq/ft width 8' 8" x depth 12'

Master Bedroom:

168 sq/ft width 12' x depth 14'

Porch - Front:

150 sq/ft width 23' 10" x depth 6' 4"

Powder Room:

49 sq/ft width 7' 10" x depth 6' 4"

Study:

86 sq/ft width 8' 8" x depth 10'

Walk-In Closet:

50 sq/ft width 7' x depth 7' 2"

What's included in this plan set


See a sample plan set
Exterior Elevations (front, rear, left & right sides) typically include:
  • Floor and ceiling heights
  • Dimensions of standard windows
  • Dimensions of roof overhangs
  • Location of all needed flashings
  • Height and location of foundation indicated in dashed lines
  • Type of finishing and textures
  • Dimension and height of chimney
Foundation plans typically include:
  • All exterior and interior dimensions
  • Thickness of foundation walls (if variable)
  • All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location
  • Location of stairwell
  • Location and sizes of windows
  • Location and dimensions of footings (where applicable and required)
Floor plan(s) typically include:
  • All interior and exterior dimensions
  • Location and sizes of doors and windows
  • Types of interior doors that correspond to a schedule
  • Indication of the structure above (second floor or roof)
  • Location of columns, beams and floor joists, including dimensions
  • Indication of details that are available on other pages
Roof plans typically include:
  • Location of all the different trusses needed
  • The general overcharge of the roof compared to the floor footprint underneath
  • Location of ridges and valleys
Building cross-section(s) and truss details typically include:
  • All the different floor and ceiling heights
  • Dimensions and design of trusses
  • Dimensions and details of overhand
  • Roof pitch on all truss sections
Construction details typically include:
  • Roof sections
  • Sections of concrete wall with wood connection
  • Section of walls with particulars called out
  • Section of concrete porch and connection with wood frame
  • Foundation particulars in the garage entrance
  • Components of certain types of walls (ex: between garage and living quarters)
Typical wall sections typically include;
  • All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
  • Note: This plan does not include an electrical layout.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$990.00
5 printed plan sets mailed to you.

8 Copy Set

$1020.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1075.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1075.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1720.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$395.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$395.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$150.00
A list of building supplies needed to construct the infrastructure of your new house.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
