Plan 46-470

Key Specs

1959
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

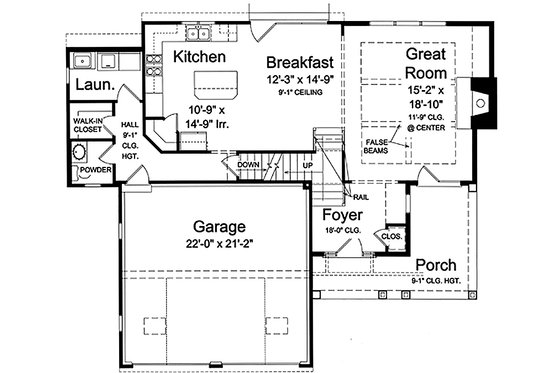

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

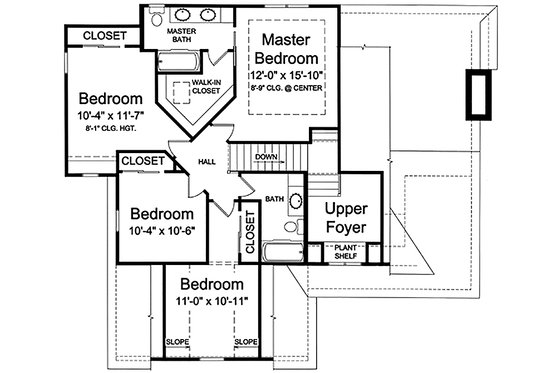

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 2.5

Stories: 2

Garages: 2

Dimension

Depth : 40' 6"

Height : 31' 6"

Width : 50' 4"

Area

Total : 1959 sq/ft

Basement Unfinished: 1003 sq/ft

First Floor: 1003 sq/ft height 9' 1"

Garage: 454 sq/ft

Second Floor: 956 sq/ft height 8' 1"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : 2"x4"

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Storage Area

Outdoor Spaces

Covered Front Porch

Code Compliance

Irc 2006

Rooms

Bathroom 2:

51 sq/ft width 5' x depth 10' 3"

Bedroom 2:

110 sq/ft width 11' x depth 10' 1"

Bedroom 2 Closet:

14 sq/ft width 2' 1" x depth 7' 1"

Bedroom 3:

153 sq/ft width 10' 4" x depth 14' 10"

Bedroom 3 Closet:

17 sq/ft width 8' 6" x depth 2' 1"

Bedroom 4:

108 sq/ft width 10' 4" x depth 10' 6"

Bedroom 4 Closet:

13 sq/ft width 6' 5" x depth 2' 1"

Coat Closet:

6 sq/ft width 2' 1" x depth 3'

Dining Room:

181 sq/ft width 12' 3" x depth 14' 10"

Family Room:

272 sq/ft width 15' x depth 18' 2"

Foyer:

88 sq/ft width 11' x depth 8'

Garage:

465 sq/ft width 22' x depth 21' 2"

Hall Closet:

20 sq/ft width 5' x depth 4' 2"

Kitchen:

136 sq/ft width 10' 9" x depth 12' 8"

Laundry Room:

48 sq/ft width 5' 8" x depth 8' 6"

Master Bathroom:

81 sq/ft width 10' 7" x depth 7' 8"

Master Bedroom:

170 sq/ft width 12' x depth 14' 2"

Master Closet:

40 sq/ft width 6' 9" x depth 6'

Powder Room:

24 sq/ft width 4' 10" x depth 5'

What's included in this plan set

See a sample plan set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

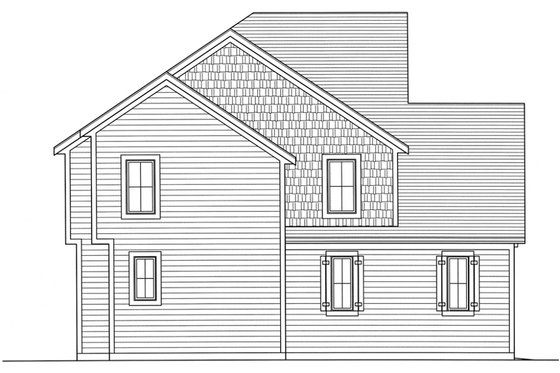

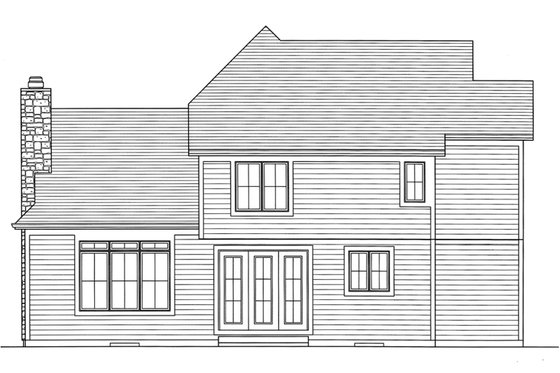

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
Fireplace detail shows how the fireplace is to be built.
Wall section shows typical framing detail of house.
