In the right setting, this richly glassed split-level Cape Cod style home serves up splendid views. All that glass assures abundant natural illumination on all but the darkest days, especially in the great room, sun room and spacious kitchen. A large and luxurious vaulted bedroom sits a half-flight up from the main floor, where it boasts a private railed deck.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

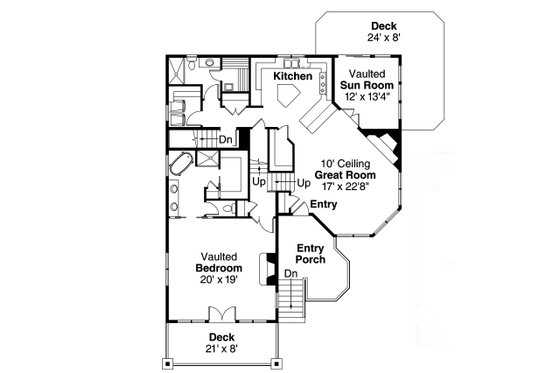

Floor Plan - Main Floor

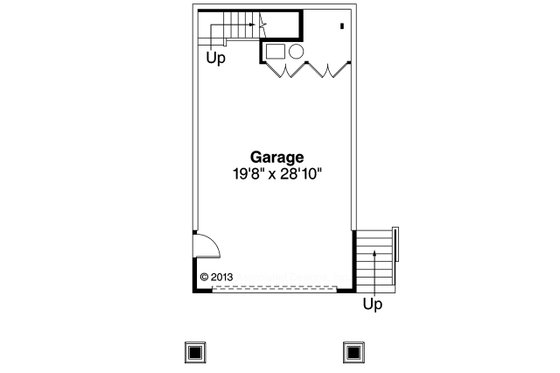

Floor Plan - Lower Floor
Floor Plan - Upper Floor
Full Specs & Features
Garage : 725 sq/ft
Main Floor : 1593 sq/ft
Porch : 160 sq/ft
Upper Floor : 223 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 9
Roof Framing : Truss/Stick
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Front Entry Garage
Suited For Narrow Lot
Suited For Sloping Lot
Covered Front Porch
Grill Deck Sundeck
Suited For Vacation Home
What's included in this plan set
See a sample plan set
Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set. The "8 set + PDF" combo contains a non-modifiable PDF Print Set.
*See important information before purchasing
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

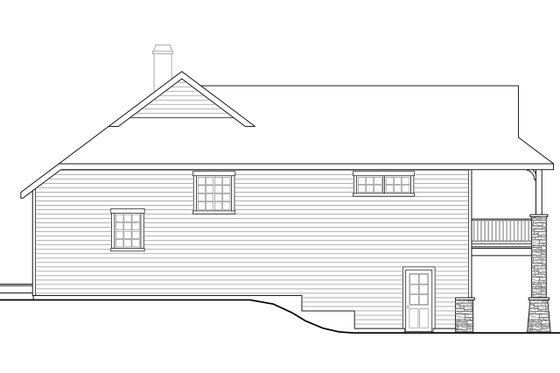

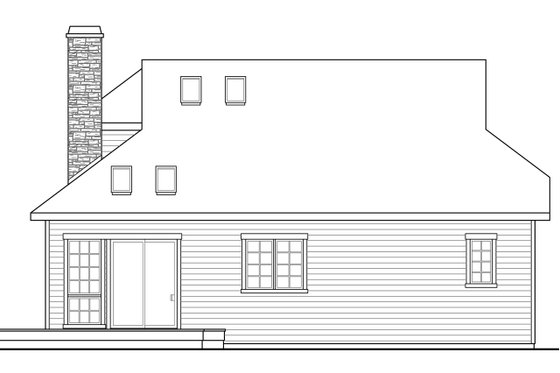

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
