Plan 413-867

Photographs may show modified designs.
Plan 413-867

Key Specs


1984
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This one of a kind English Tudor, Craftsman style house plan offers you a lot of features with a grand exterior The master bath features double vanities, whirlpool tub, dressing room and much more. The floor plan features glass across the back of the house which brings in plenty of natural light. The garage has 2-car dimensions perfect for your vehicles or other hobbies.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

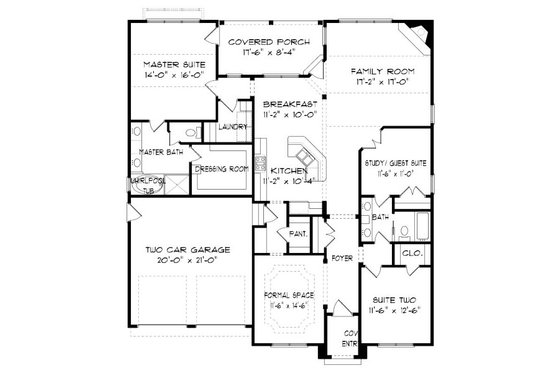

Floor Plan - Main Floor Plan

Reverse
Tudor Floor Plan - Main Floor Plan Plan #413-867

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 55' 6"
Height : 25'
Width : 50'

Area

Total : 1984 sq/ft
First Floor: 1984 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 14:12
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : 2"x6"

Bedroom Features

Guest Suite
Split Bedrooms

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Rear Porch

Rooms

Breakfast:

111 sq/ft width 11' 2" x depth 10'

Covered Porch:

145 sq/ft width 17' 6" x depth 8' 4"

Family Room:

291 sq/ft width 17' 2" x depth 17'

Garage:

420 sq/ft width 20' x depth 21'

Guest Suite:

126 sq/ft width 11' 6" x depth 11'

Guest Suite 2:

143 sq/ft width 11' 6" x depth 12' 6"

Kitchen:

115 sq/ft width 11' 2" x depth 10' 4"

Master Suite:

224 sq/ft width 14' x depth 16'
