Plan 484-1

Photographs may show modified designs.
Plan 484-1

Key Specs


1990
sq ft

3
Beds

3.5
Baths

3
Floors

2
Garages

Plan Description


The nearly 2,000 square foot design provides for contemporary family living with a spacious open family-dining room, designer kitchen, and an opulent master suite. Also included are two secondary bedroom suites, a roof top sky room, and a flex-room that can be used for an office, game room, media center or a children's play/ teen room. This design features an active sliding moon-roof over a dramatic 2-story glass stair well in a progressive-modern design.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

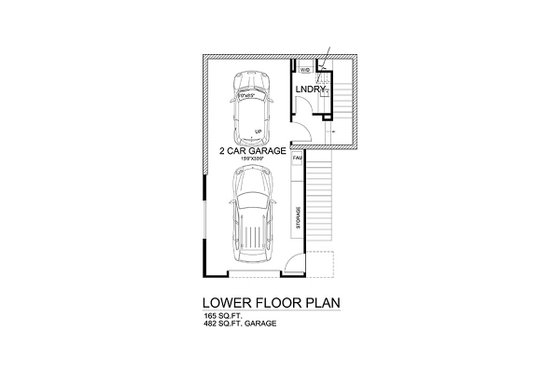

Floor Plan - Lower Floor Plan

Reverse

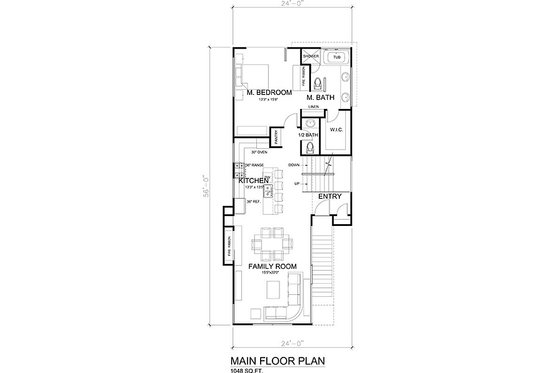

Floor Plan - Main Floor Plan

Reverse

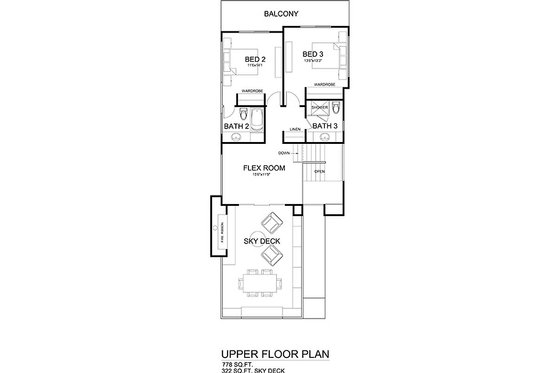

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 3
Garages: 2

Dimension

Depth : 56'
Height : 32'
Width : 24'

Area

Total : 1990 sq/ft
Bonus : 182 sq/ft
Decks : 454 sq/ft
Garage : 462 sq/ft
Lower Floor : 165 sq/ft
Main Floor : 1048 sq/ft
Patios : 132 sq/ft
Upper Floor : 778 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Ceilings of upper master, bonus and secondary bedrooms are mono-vaulted.
Main Ceiling : 10'

Roof

Primary Pitch : 2:12
Roof Framing : Wood
Roof Load : 30
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Stucco / Cementitious Board / Cementitious Plank
Framing : Conventional wood frame
Insulation : Walls: R-13/R-19 Floors: R-30 Roof: R-30

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Loft
Play Flex Room

Garage Features

Front Entry Garage
Garage Under
Tandem Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

More

Economical To Build
Suited For Vacation Home

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural 3rd Floor Framing
Structural Notes
Structural Roof Framing

Energy Efficient Features

Energy Efficient Design
Green Specifications
Passive Solar Systems
Passive Water Systems

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$4350.00
5 printed plan sets mailed to you.

8 Copy Set

$4500.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$5495.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Single Set

$3900.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Slab

$150.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
