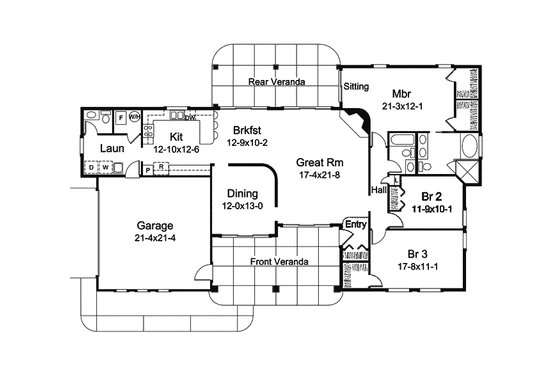

The front partially covered veranda, with its 15' high volume ceiling, receives abundant light from the dormer windows above. A unique curved wall around the dining, separate entry with coat closet and two wide glass sliding doors to the front and rear verandas are a few awesome features of this home. The kitchen excels in cabinet storage and has an eating bar. With a sitting area adjacent to the rear veranda, the master bedroom has two walk-in closets and a luxury bath with a separate shower.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
COVERSHEET: The coversheet has a rendering showing the house as it will look
when it is built. In most cases this is not required for house construction. The purpose
of the coversheet is to give the homeowner a visual representation of how the home
will look when it is completed.
FOUNDATION PLAN: The foundation plan is used to show how the foundation should
be built. It explains the thickness of the foundation walls, floor joist sizes and spacing,
column locations, window/door/vent locations and sizes, suggested furnace/water
heater locations, plumbing (where required) and miscellaneous construction details
related to the foundation and basement.
FLOOR PLAN(S): The floor plans of the home indicate the layout/construction of each
floor of the house. Items typically included are room dimensions, wall sizes, plumbing
electrical locations, stair locations, door/window sizes, kitchen and bath layouts, ceiling
conditions in each space, flooring, structural information and any special conditions
related to the floor plan.

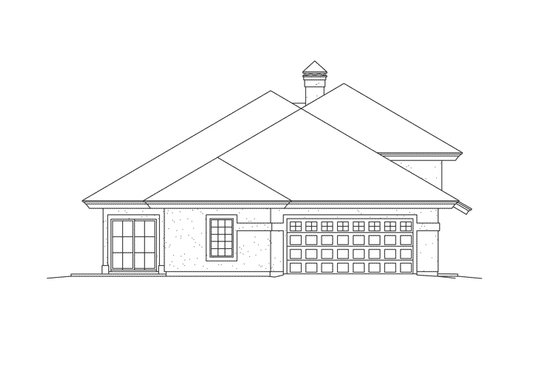

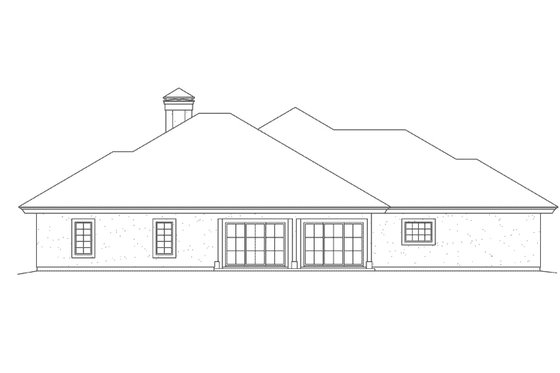

ELEVATIONS: The elevation sheets communicate the material/dimensions that the
designer envisioned, creating the correct look and feel on the outside of the house.
Some of the items typically shown on an elevation sheet include materials used on the
exterior of the house, size and shape of windows and doors, size and shape of vents,
size of the trim, height and dimensions of various elements, depth of foundations,
types of shingles and moldings, pitch of the roof, placement of materials (example:
brick soldier course, brick quoins, etc.), roof plan, and location of gutters and
DETAILS: The details include an explanation of how the smaller items are to be
designed and constructed. Examples include the dimensions and appearance of a stair
handrail, room moldings, design of railing spindles for staircases, and description of
how a fireplace should look. The designer may add details for anything a builder needs
to understand the design of the house.
SECTIONS: The sections show how the parts of the building fit together. Typical
sections include walls, fireplace, and stairs. The designer may add sections in a set for
anything a builder needs to understand about the construction of the house.
INTERIOR ELEVATIONS: The interior elevations show pictures of how key interior features
should look. Typical items and areas that are drawn include fireplaces, kitchens, and
