Plan 1010-107

Photographs may show modified designs.
Plan 1010-107

Plan Description


Craftsman accents and shake shingles accentuate the clean lines of this traditional ranch plan. Upon entering, an open concept living space with formal dining area with step ceiling and great room also with step ceiling and a corner fireplace. The kitchen overlooks both the great room and the breakfast room. The master suite with step ceiling and luxury bath offers the owners the perfect escape. The split bedroom plan is completed by 2 additional bedrooms and a shared hall bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 62' 8"
Height : 25'
Width : 64'

Area

Total : 2024 sq/ft
Basement Unfinished: 2024 sq/ft
First Floor: 2024 sq/ft height 9'
Garage: 528 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

width 11' x depth 11'

Bedroom 3:

width 11' x depth 11'

Breakfast Nook:

width 11' x depth 10' 10"

Covered Front Porch:

100 sq/ft

Dining Room:

width 12' x depth 12'

Garage:

528 sq/ft width 22' x depth 22'

Great Room:

width 17' 2" x depth 16' 10"

Kitchen:

width 12' 6" x depth 11' 2"

Master Bedroom:

width 13' 10" x depth 16' 10"

Master Closet:

width 6' 4" x depth 9' 6"

What's included in this plan set


See a sample plan set
All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

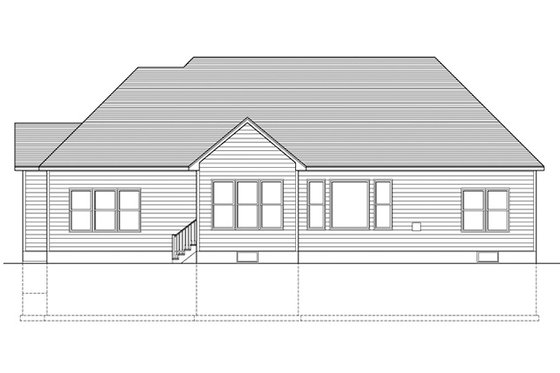

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

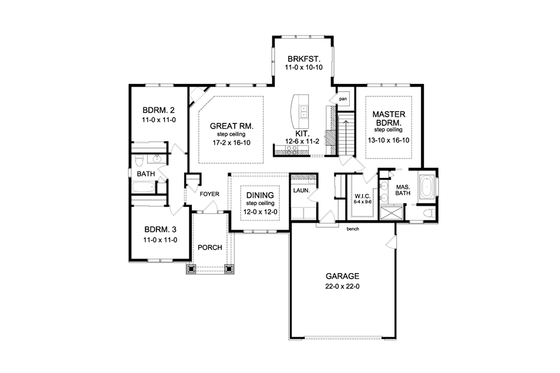

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
