For a narrow lot, this plan makes the best use of space. On the lot shown, the flipped floor plan makes a lot of sense. Smart floor plan details, like pinching the dining area to create a defined space, and adding an easily accessed deck, enhance the comfort and functionality of the home. - Fine Homebuilding Magazine Designed for a narrow city lot this home has an open layout with loft style living to capture city views. The main level has a gallery in the foyer with views of the open stairway. The garage on the lower level is multi-use as well as the 2 additional bedrooms or potential family room. Access the backyard patio and soaking tub from the rear of the home. The upper floor showcases a master suite on the street side and open kitchen dining and living through the core of the home with vaulted ceilings. The spacious second floor deck cantilevered out the rear provides additional outdoor living space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.

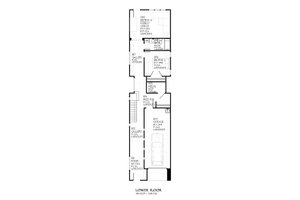

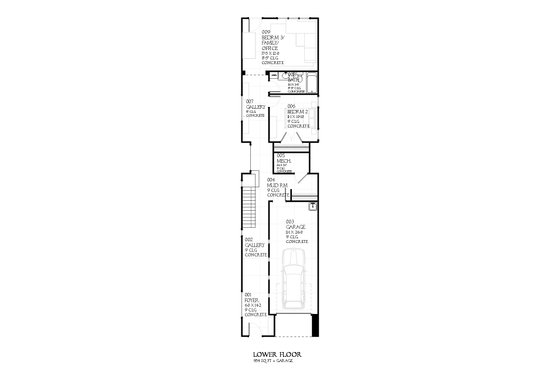

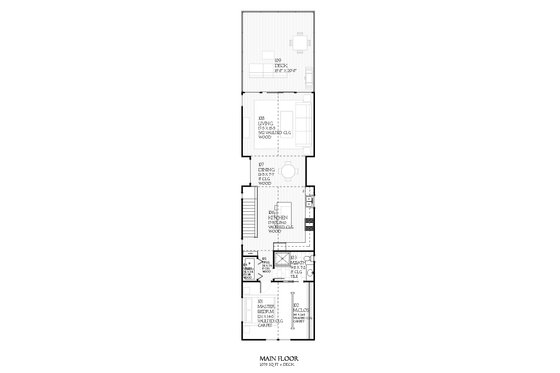

Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

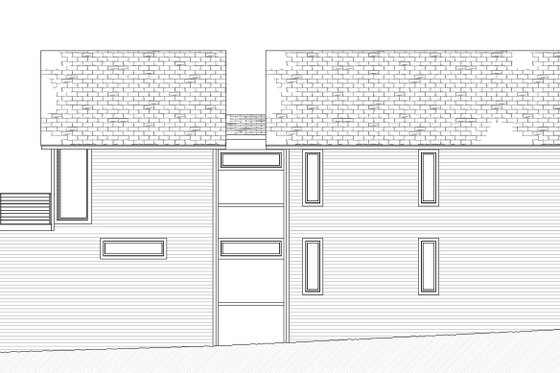

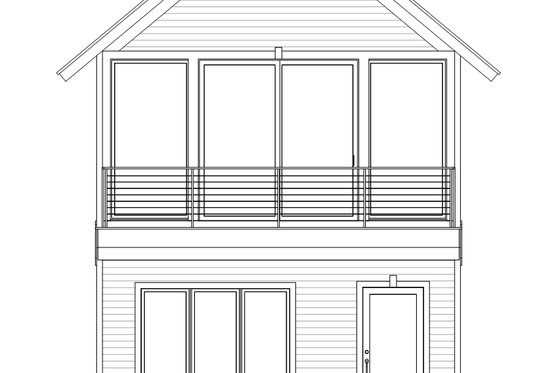

Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
