Plan 20-1823

Key Specs


Plan Sq Ft

2038
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

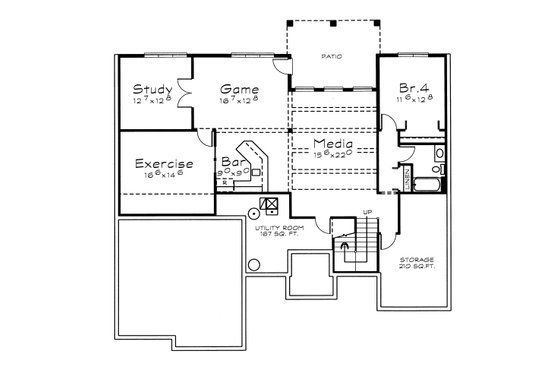

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

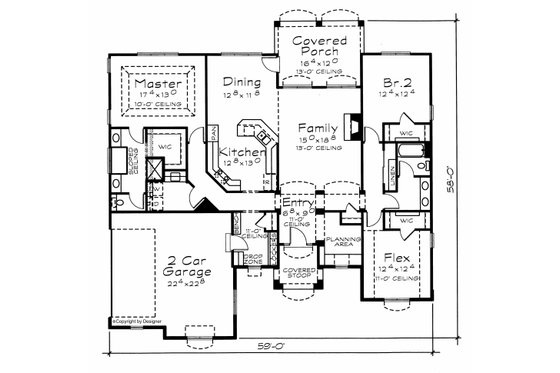

Floor Plan - Main Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 58'
Height : 26'
Width : 59'

Area

Total : 2038 sq/ft
Basement Unfinished: 1487 sq/ft
First Floor: 2038 sq/ft height 9'
Garage: 502 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco
Framing : 2"x6"

Rooms

Dining Room:

147 sq/ft width 12' 8" x depth 11' 8"

Entry:

56 sq/ft width 7' x depth 8'

Family Room:

280 sq/ft width 15' x depth 18' 8"

Flex Room:

152 sq/ft width 12' 4" x depth 12' 4"

Kitchen:

164 sq/ft width 12' 8" x depth 13'

Laundry Room:

76 sq/ft width 10' 6" x depth 7' 3"

Master Bathroom:

225 sq/ft width 17' 4" x depth 13'

Master Bedroom:

225 sq/ft width 17' 4" x depth 13'

Master Closet:

51 sq/ft width 7' x depth 7' 4"

What's included in this plan set


See a sample plan set
  • Cover Page: Front elevation and informative reference sections including: general notes and design criteria

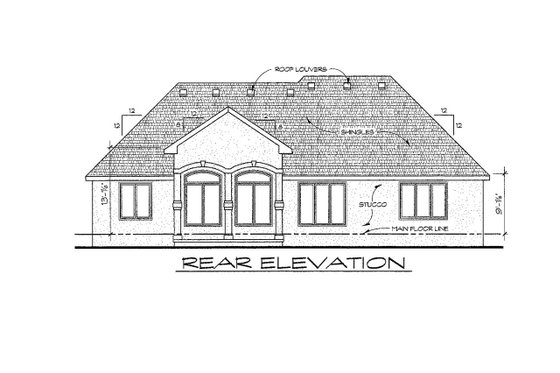

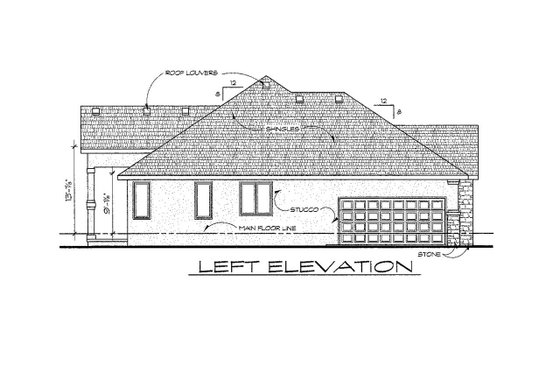

  • Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
  • Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
  • Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
  • Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
  • Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
  • Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1105.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build

$1605.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set

$1830.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$2330.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$685.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$245.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$245.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Walk Out Basement

$490.00
Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$245.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$245.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$175.00
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Unlimited Use License

$500.00
Unlimited Use License.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
