Home > Style > Country

Plan 23-2408

Key Specs

2048
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Plan Description

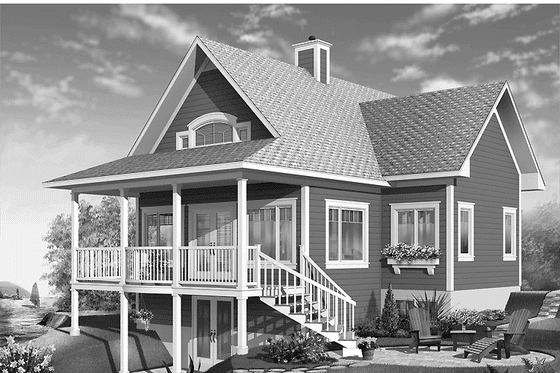

Perfect for a lot that backs up to water, this country home exudes gracious hospitality with covered front and rear porches. Inside, the main level includes a large gathering room for cozy evenings. The L-shaped island kitchen includes a round snack bar, while a nearby dining area (open to the living room) awaits more leisurely meals. Also on this floor, the master bedroom features a walk-in closet, with close proximity to a full bathroom with a corner tub and shower. On the lower level, two additional bedrooms share another bathroom and a large recreation room.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

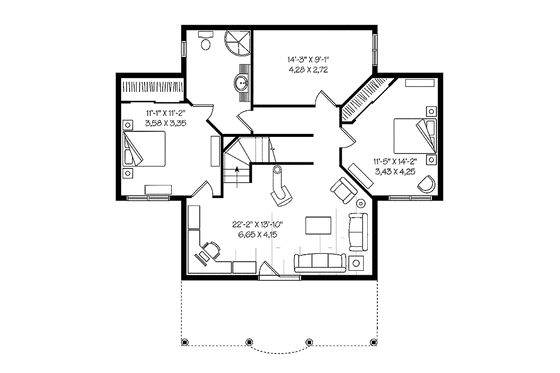

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

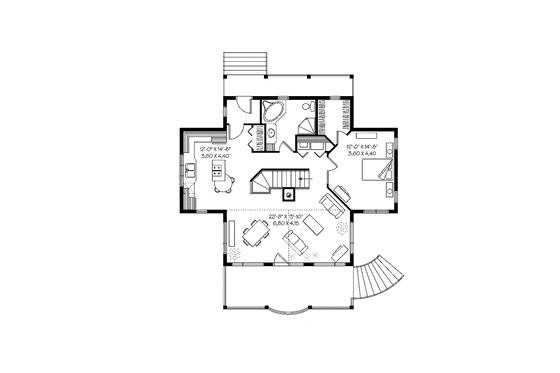

Floor Plan - Main Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 2

Garages: 0

Dimension

Depth : 32'

Height : 24' 10"

Width : 40'

Area

Total : 2048 sq/ft

Basement Living: 1024 sq/ft height 8'

First Floor: 1024 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 1:

176 sq/ft width 12' x depth 14' 8"

Bedroom 2:

161 sq/ft width 11' 5" x depth 14' 2"

Bedroom 3:

123 sq/ft width 11' 1" x depth 11' 2"

Family Room:

313 sq/ft width 22' 8" x depth 13' 10"

Great Room:

306 sq/ft width 22' 2" x depth 13' 10"

Kitchen:

176 sq/ft width 12' x depth 14' 8"

What's included in this plan set

See a sample plan set

*Important* This designer may need 5-7 business days to update the plan content when an order is placed. Please call to confirm your order details.

This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:

Floor and ceiling heights
Dimensions of standard windows
Dimensions of roof overhangs
Location of all needed flashings (mention of “typical” in most cases)
Height and location of foundation indicated in dashed lines
Type of finishing and textures (we write siding, horizontal or vertical but not the company)
Dimension and height of chimney (dimensions yes but the height is determined by the local building code)

Foundation plans typically include:

All exterior and interior dimensions
Thickness of foundation walls (if variable)
All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
Location of stairwell
Location and sizes of windows
Location and dimensions of footings (where applicable and required)

Floor plan(s) typically include:

All interior and exterior dimensions (included but not as a schedule)
Location and sizes of doors and windows
Indication of the structure above (second floor or roof)
Indication of details that are available on other pages

Roof plans typically include:

Location of all the different trusses needed
The general overcharge of the roof compared to the floor footprint underneath

Building cross-section(s) and truss details typically include:

All the different floor and ceiling heights
Dimensions and design of trusses
Dimensions and details of overhand
Roof pitch on all truss sections

Construction details typically include:

Roof sections
Sections of concrete wall with wood connection
Section of walls with particulars called out
Section of concrete porch and connection with wood frame
Foundation particulars in the garage entrance
Components of certain types of walls (ex: between garage and living quarters)

Typical wall sections typically include;

All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
Note: This plan does not include HVAC, electrical and plumbing.

*** Please note that some plans from this designer may be delayed 5-7 days as they are updating plan content. ***

Pricing

Plan Options

PDF Set

Best Value!

$1200.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Three Copy and PDF Set

$1300.00

3 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1680.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Walk Out Basement

$0.00

Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$160.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$48.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$80.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
