Ceiling Heights are 8' and go to 9' in the tray areas.
Master Bedroom 13/4x18/4
Mast. Bath/Closet 18/4x15/9
Living Room 16/0x17/0
Dinning Room 13/4x11/0
Bedroom near kitchen 11/0x11/4
Bedroom near laundry 11/0x11/8
Laundry 12/8 window to washer/dryer 9/4 door to door.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

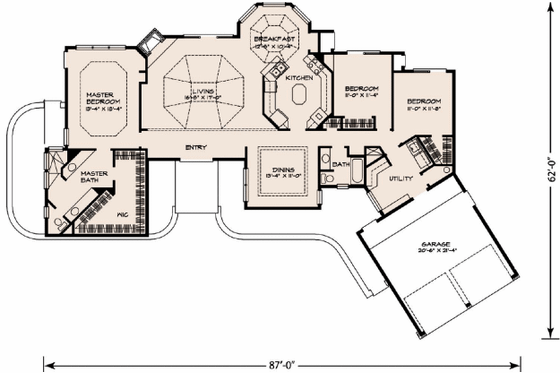

Floor Plan - Main Floor
Full Specs & Features
Garage : 441 sq/ft
Main Floor : 2122 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Ceiling are 8' and go to 9' in the tray areas of the house.
Main Ceiling : 8'
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Suited For Corner Lot
Suited For View Lot
What's included in this plan set
See a sample plan set
*See important information before purchasing
Elevations set to 1/4" scale
Dimensioned Floor plans set to 1/4" scale
Roof plan: Overhead plan shows peaks, valleys and roof pitch
Building Sections Interior Elevations: Cabinet and millwork details.
Electrical floor plan layout
General notes and details.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
