Plan #25-4488

Key Specs


  • 2167 sq/ft

  • 3 Bedrooms

  • 2 Baths

  • 2 Floors

  • 2 Garage

Plan Description

Modern and inviting, this two-storey house is 40 feet wide by 48 feet 5 inches deep and provides 2,167 square feet of living space in addition to a 460 square foot two-car garage. With a 1,139 square foot living area and nine-foot high ceilings, the ground floor includes a reading room, a powder room, a living room overlooking two floors with a fireplace, an open kitchen with an island and a dining room, a large storage area and a laundry room. The upper floor has 1,028 square feet of living space and features a family bathroom and three bedrooms, including a large master bedroom with a walk-in closet and private bathroom.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

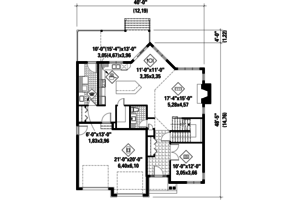

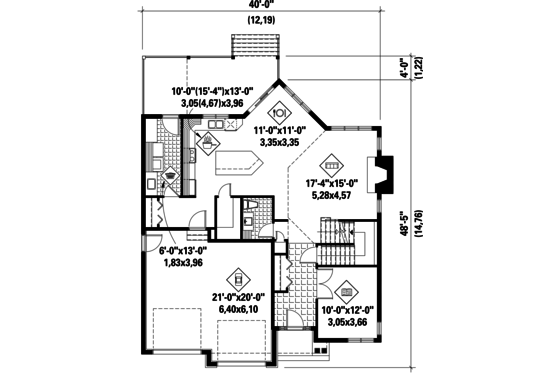

Floor Plan - Main Floor Plan
Traditional Style House Plan - 3 Beds 2.00 Baths 2167 Sq/Ft Plan #25-4488 Floor Plan - Main Floor Plan - Houseplans.com

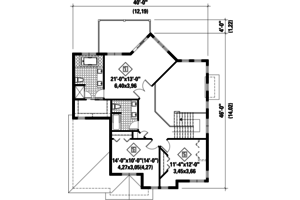

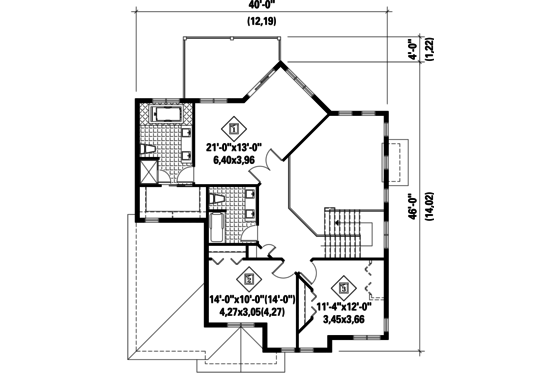

Floor Plan - Upper Floor Plan
Traditional Style House Plan - 3 Beds 2.00 Baths 2167 Sq/Ft Plan #25-4488 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2
Stories : 2
Garages : 2

Dimension

Height : 31' 1"
Width : 40'
Depth : 48' 5"

Area

Total : 2167 sq/ft
Garage : 460 sq/ft
Main Floor : 1139 sq/ft
Upper Floor : 1028 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Load : 50
Roof Framing : Truss
Primary Pitch : 8/12
Secondary Pitch : 8/12

Exterior Wall Framing

Framing : Wood - 2 x 6
Exterior Wall Finish : Siding Stone
Insulation : R20

What's included in this plan set

See a sample plan set

  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
*See important information before purchasing

Pricing

Plan Options
5 Copy Set $1035.00 5 printed plan sets mailed to you.
8 Copy Set $1080.00 8 printed plan sets mailed to you.
PDF Set Best Value! $1225.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $1845.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Reproducible Set $2070.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Basement $0.00 Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Additional Copies $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
Material List $145.00 A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
