Plan 417-797

Photographs may show modified designs.
Plan 417-797

Key Specs


2200
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This tasteful one-story home design offers unmatched elegance. A beautiful front porch and large windows beckon you to sit on a porch swing and relax. As you enter the home, the foyer leads guests past the den and the dining room and into the expansive great room, a perfect setting for all types of family gatherings. The roomy kitchen with an island cook-top serves the bayed breakfast nook, which enjoys views into the backyard. Private spaces start with the master suite, with its impressive tray ceiling and enormous walk-in closet. A luxurious master bath with a garden tub, dual vanities, and a walk-in shower completes the suite. Two more bedrooms share a full hall bath on the opposite side of the home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

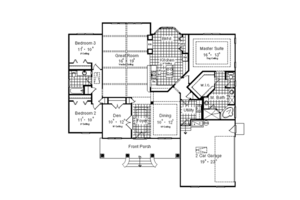

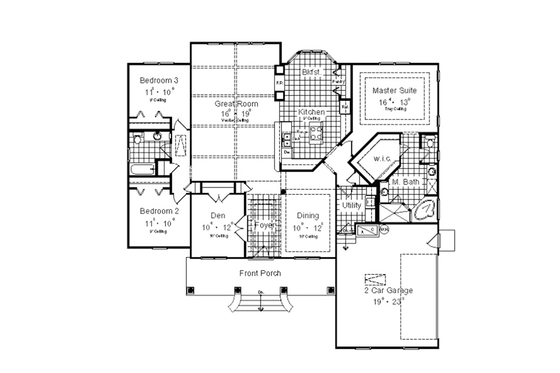

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 55'
Height : 22'
Width : 60'

Area

Total : 2200 sq/ft
First Floor: 2200 sq/ft
Garage: 471 sq/ft
Porch: 201 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6 Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard
Covered Front Porch

Rooms

Bedroom 2:

width 11' 8" x depth 10'

Bedroom 3:

width 11' 8" x depth 10'

Covered Front Porch:

201 sq/ft

Den:

width 10' 6" x depth 12'

Dining Room:

width 10' x depth 12' 8"

Garage:

471 sq/ft width 19' x depth 23' 8"

Great Room:

width 16' x depth 19'

Master Suite:

width 16' 4" x depth 13'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

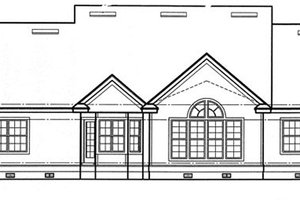

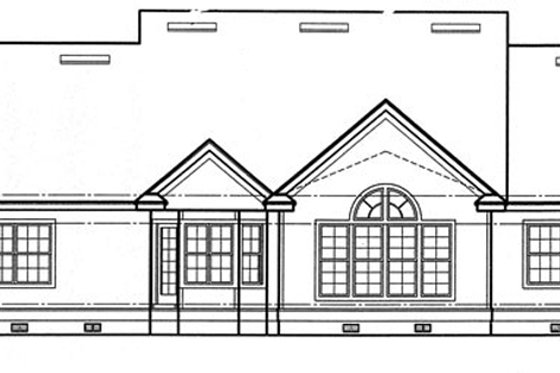

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$714.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$875.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$875.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1751.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$573.75
Ideal for level lot, lower level of home partially or fully underground.

Slab

$573.75
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$573.75
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$38.25
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$63.75
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
