Plan 927-10

Photographs may show modified designs.
Plan 927-10

Key Specs


2286
sq ft

4
Beds

3
Baths

2
Floors

2
Garages

Plan Description


The gazebo-like sitting room bay off the master suite draws the eye at once. It's one of many features that make this 4 bedroom 3 bath split plan special. The two-story foyer leads to the vaulted great room and airy island kitchen. Behind the garage and kitchen is a guest room/study with full bath. The master suite runs from front to back, beside the foyer. Two more bedrooms share a bath upstairs and there is a bonus room over the garage. Please specify basement or crawlspace foundation when ordering.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

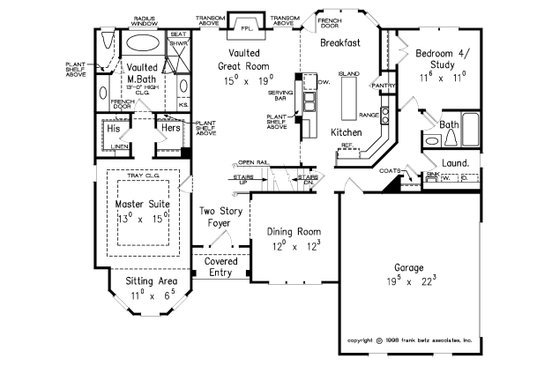

Floor Plan - Main Floor Plan

Reverse
Traditional Floor Plan - Main Floor Plan Plan #927-10

Floor Plan - Upper Floor Plan

Reverse
Traditional Floor Plan - Upper Floor Plan Plan #927-10

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 48'
Height : 30' 8"
Width : 55'

Area

Total : 2286 sq/ft
Bonus: 262 sq/ft
First Floor: 1712 sq/ft height 9'
Garage: 473 sq/ft
Second Floor: 574 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Stick
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot

Rooms

2nd floor hall bath:

width 5' 6" x depth 12' 6"

Bedroom 2:

147 sq/ft width 12' x depth 12' 3"

Bedroom 3:

144 sq/ft width 13' x depth 12' 10"

Bedroom 4:

126 sq/ft width 12' 3" x depth 11'

Bonus Room - Finished:

237 sq/ft width 11' 5" x depth 19' 10"

Breakfast Room:

99 sq/ft width 11' x depth 9'

Dining Room:

147 sq/ft width 12' x depth 12' 3"

Foyer:

57 sq/ft width 8' x depth 7' 2"

Garage:

473 sq/ft width 21' 5" x depth 22' 3"

Gathering Room:

283 sq/ft width 15' x depth 18' 11"

Kitchen:

169 sq/ft width 13' x depth 13'

Laundry Room:

44 sq/ft width 8' 8" x depth 5' 6"

Master Bathroom:

148 sq/ft width 13' 1" x depth 11' 4"

Master Bedroom:

196 sq/ft width 13' 1" x depth 15'

Master Closet:

width 4' 8" x depth 6'

Master Closet 2:

width 43' 8" x depth 6'

Master Sitting Area:

width 11' 1" x depth 6' 5"

What's included in this plan set


See a sample plan set
  • Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
  • All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1620.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1700.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$3090.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$85.00
A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$55.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Browse Similar Plans

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
