Plan 406-9654

Photographs may show modified designs.
Plan 406-9654

Key Specs

sq ft





Plan Description

This sweet cottage gives you old-fashioned curb appeal and a very modern, open layout inside. The island kitchen flows into the living room, so it's easy to hang out with family and friends while putting the finishing touches on dinner. The master suite includes two large closets and a five-piece bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

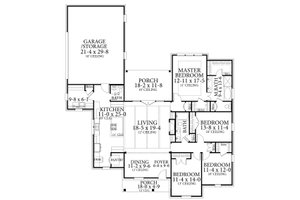

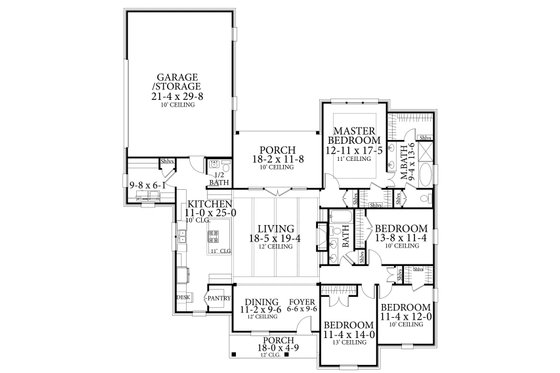

Floor Plan - Main Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 1
Garages: 2


Depth : 74' 8"
Height : 27' 1"
Width : 64' 4"


Total : 2298 sq/ft
Garage : 699 sq/ft
Main Floor : 2298 sq/ft
Porch : 300 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Beamed Living Room ceiling; tray ceiling in Master Bedroom


Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Brick, Stone and Stucco
Framing : 2 x 4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry

Garage Features

Rear Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch


Empty Nester


Bedroom 2:

width 11' 4" x depth 14'

Bedroom 3:

width 11' 4" x depth 12'

Bedroom 4:

width 13' 8" x depth 11' 4"

Covered Front Porch:

width 18' x depth 4' 9"

Covered Rear Porch:

width 18' 2" x depth 11' 8"

Dining Room:

width 11' 2" x depth 9' 6"


width 6' 6" x depth 9' 6"


width 11' x depth 25'


width 9' 8" x depth 6' 1"

Living Room:

width 18' 5" x depth 19' 4"

Master Bath:

width 9' 4" x depth 13' 6"

Master Bedroom:

width 12' 11" x depth 17' 5"
