Plan 417-238

Photographs may show modified designs.
Plan 417-238

Key Specs


2326
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

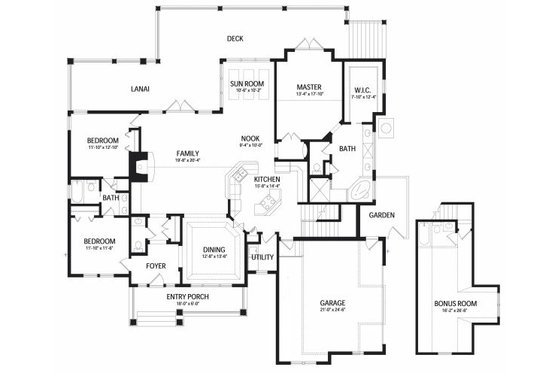

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 72' 4"
Height : 26'
Width : 64'

Area

Total : 2326 sq/ft
Bonus: 358 sq/ft
First Floor: 2326 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Family Room Keeping Room
Play Flex Room
Storage Area
Sunroom

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch

Rooms

3rd BR Closet:

9 sq/ft width 4' 6" x depth 2'

Bathroom 2:

88 sq/ft width 11' 10" x depth 7' 6"

Bathroom 3:

46 sq/ft width 8' 6" x depth 5' 6"

Bathroom 4:

87 sq/ft width 6' 4" x depth 13' 10"

Bedroom 2:

140 sq/ft width 11' 10" x depth 11' 10"

Bedroom 2 Closet:

11 sq/ft width 5' 10" x depth 2'

Bedroom 3:

151 sq/ft width 11' 10" x depth 12' 10"

Bedroom 3 Closet:

11 sq/ft width 5' 10" x depth 2'

Bedroom 4:

144 sq/ft width 12' x depth 12'

Bedroom 4 Closet:

17 sq/ft width 8' 6" x depth 2'

Bedroom 5:

179 sq/ft width 12' 8" x depth 14' 2"

Bedroom 5 Closet:

26 sq/ft width 4' 2" x depth 6' 4"

Bedroom 6:

139 sq/ft width 12' 4" x depth 11' 4"

Bedroom 6 Closet:

26 sq/ft width 4' 3" x depth 6' 4"

Bonus Room - Finished:

181 sq/ft width 11' x depth 16' 6"

Breakfast Room:

210 sq/ft width 10' 6" x depth 20'

Dining Room:

171 sq/ft width 12' 8" x depth 13' 6"

Foyer:

80 sq/ft width 10' x depth 8'

Game Room:

383 sq/ft width 18' x depth 21' 4"

Garage:

514 sq/ft width 21' x depth 24' 6"

Gathering Room:

380 sq/ft width 19' x depth 20'

Kitchen:

224 sq/ft width 16' x depth 14'

Laundry Room:

45 sq/ft width 6' x depth 7' 6"

Master Bathroom:

198 sq/ft width 12' 8" x depth 15' 8"

Master Bedroom:

208 sq/ft width 13' 4" x depth 15' 8"

Master Closet:

94 sq/ft width 7' 8" x depth 12' 4"

Porch - Front:

110 sq/ft width 22' x depth 5'

Porch - Rear:

881 sq/ft width 43' x depth 20' 6"

Powder Room:

21 sq/ft width 3' x depth 7' 4"

Storage:

134 sq/ft width 12' x depth 11' 2"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

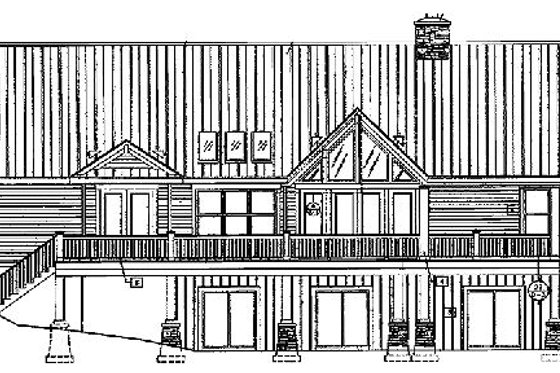

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
