Ranch House Plan 489-3

Key Specs


Plan Sq Ft

2352
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$275.00
$89.00
$598.00
$200.00
$450.00
$39.00
$200.00
Subtotal
$2997.00
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

2352
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Plan Description


A simple modern-styled layout and efficient use of space yield abundant storage and large rooms for this much square footage. A dramatic 12-foot ceiling is possible in the Great Room and Kitchen.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

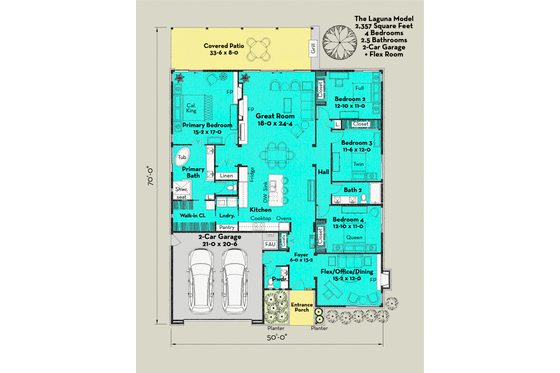

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 70'
Height : 16'
Width : 50'

Area

Total : 2352 sq/ft
Garage : 467 sq/ft
Main Floor : 2357 sq/ft
Porch : 362 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 12' @ Entry, Kitchen & Family 8' to 10' @ Bedrooms & Baths, 8' Garage Ceiling With Small Attic Space & Mechanical Ducts.
Garage Ceiling : 8'
Main Ceiling : 12'

Roof

Primary Pitch : 3:12
Roof Framing : wood trusses
Roof Type : Standing Seam or Low-slope Shingles

Exterior Wall Framing

Exterior Wall Finish : Stucco and Masonry Veneer
Framing : 2x6
Insulation : California Code Standard

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Vaulted / Cathedral Ceilings

Garage Features

Front Entry Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

More

Economical To Build
Suited For Vacation Home
Wheelchair Adaptable

Structural Information Provided

Foundation Drawing
Structural Notes
Structural Roof Framing

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
* See important information before purchasing
