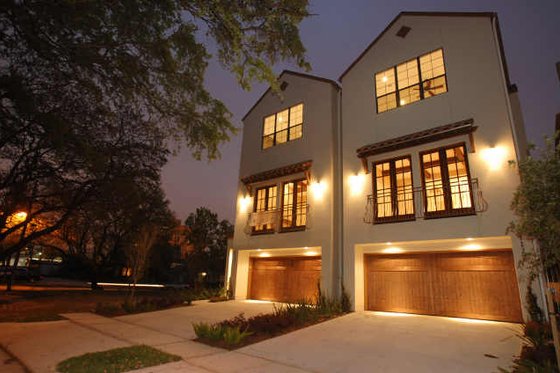

This 2375 square foot, 3-story patio home (freestanding townhome) is designed with a clean line, Spanish inspired exterior. The first floor bedroom can also serve as a great home office. The second floor contains the living spaces and is open from end to end for casual living and entertaining.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

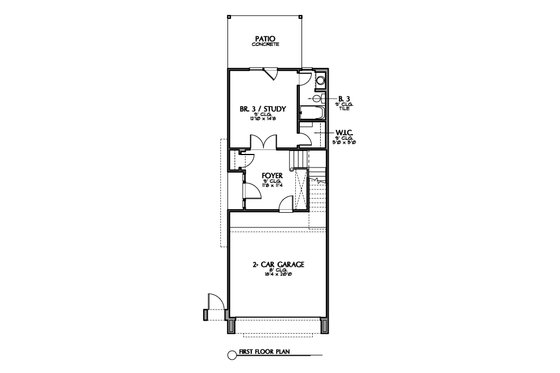

Floor Plan - Lower Floor

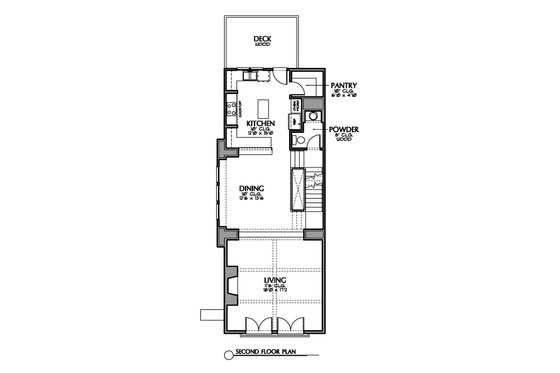

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Lower Floor : 491 sq/ft
Main Floor : 977 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

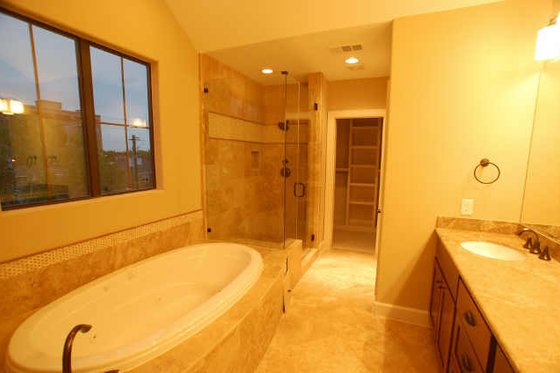

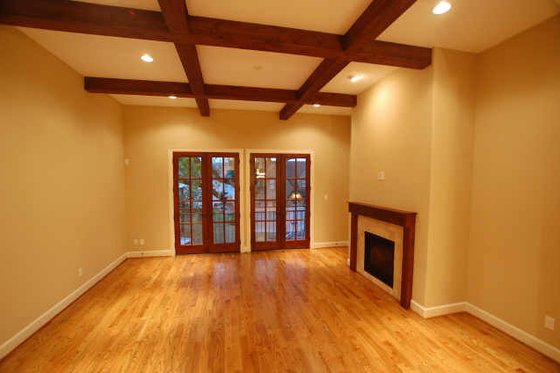

Ceiling Details : Living room ceiling is 11'-6". Master Bedroom ceiling is sloped to 10'-0". Master bath ceiling is vaulted in tub area.
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Composition (tile over second floor Juliet balcony)
Exterior Wall Framing
Exterior Wall Finish : Stucco / Siding
Framing : 2X4
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Pantry Cabinet Pantry
Additional Room Features
Master Sitting Area
Front Entry Garage
Suited For Narrow Lot
Zero Lot Lines
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
