Plan 6-129

Photographs may show modified designs.
Plan 6-129

Key Specs


2384
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

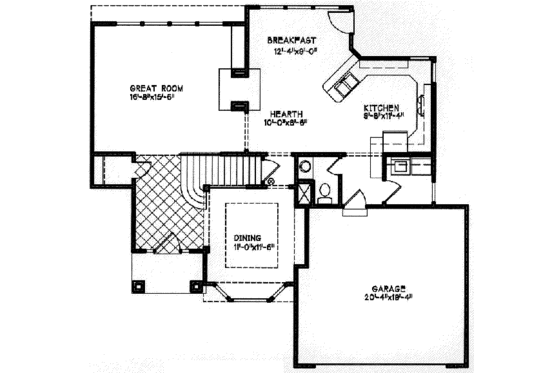

Floor Plan - Main Floor Plan

Reverse

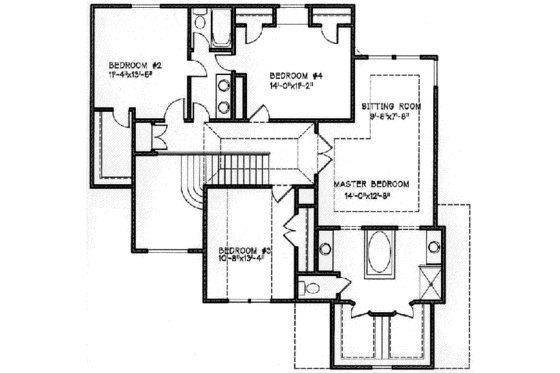

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 45'
Height : 31'
Width : 46'

Area

Total : 2384 sq/ft
Basement : 1090 sq/ft
Main Floor : 1090 sq/ft
Upper Floor : 1294 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 7:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Master Sitting Area

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set
  • Foundation / Lower Level Plan (1/4"=1'): Layout of foundation or lower floor, with room and overall dimensions where applicable. All beam, column, pad, and joist sizing specified. Furnace and water heater locations shown.
  • Main Floor Plan (1/4"=1'): : Layout of main floor, with room and overall dimensions. Beam, joist, header, door and window sizes specified. Vaults and ceiling heights are shown.
  • Upper Floor Plan (1/4"=1'): Layout of upper floor, with room and overall dimensions. Beam, joist, header, door and window sizes specified. Vaults and ceiling heights are shown.

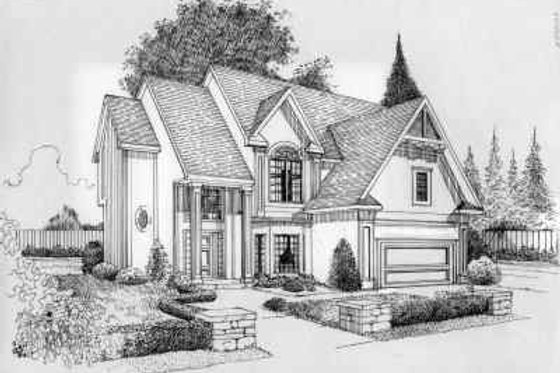

  • Front Elevation (1/4"=1'): Front view of home. Roof pitches and materials specified.
  • Back Elevation (1/4"=1') and Side Elevations (1/8"=1'): Back and side view with roof pitches shown.
  • Roof Plan (1/4"=1'): Layout of roof including roof pitches and plate heights.
  • Detail Sheet: Typical Foundation wall section, wall section and framing details.  Not all details relate to every plan.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1100.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$200.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$200.00
Ideal for level lot, single layer concrete poured directly on grade.

Daylight Basement

$350.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
