Plan 20-363

Photographs may show modified designs.
Plan 20-363

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 3

Dimension

Depth : 60'
Height : 28'
Width : 65'

Area

Total : 2393 sq/ft
First Floor: 2393 sq/ft
Garage: 683 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

Rooms

Bathroom 2:

47 sq/ft width 5' 4" x depth 9'

Bathroom 3:

103 sq/ft width 10' 8" x depth 9' 8"

Bedroom 2:

157 sq/ft width 14' 4" x depth 11'

Bedroom 3:

128 sq/ft width 10' 8" x depth 12'

Dining Room:

159 sq/ft width 11' x depth 14' 6"

Foyer:

80 sq/ft width 9' 6" x depth 8' 6"

Garage:

606 sq/ft width 21' 8" x depth 28'

Kitchen:

139 sq/ft width 11' x depth 12' 8"

Kitchen Island:

23 sq/ft width 3' 4" x depth 7'

Living Room:

409 sq/ft width 21' x depth 19' 6"

Master Bathroom:

132 sq/ft width 12' x depth 11'

Master Bedroom:

227 sq/ft width 17' 6" x depth 13'

Master Closet:

50 sq/ft width 8' x depth 6' 4"

Nook:

148 sq/ft width 13' 6" x depth 11'

Study:

181 sq/ft width 11' 4" x depth 16'

Utility Room:

33 sq/ft width 5' 4" x depth 6' 4"

What's included in this plan set


See a sample plan set
  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

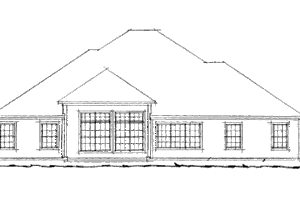

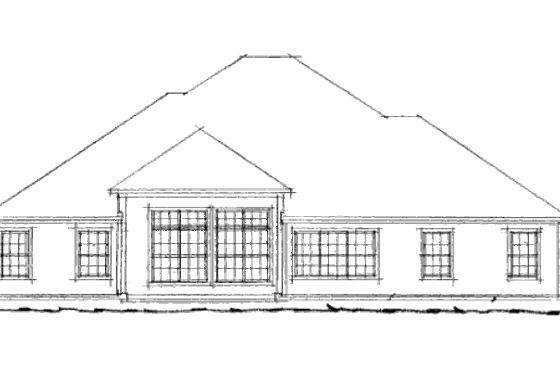

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

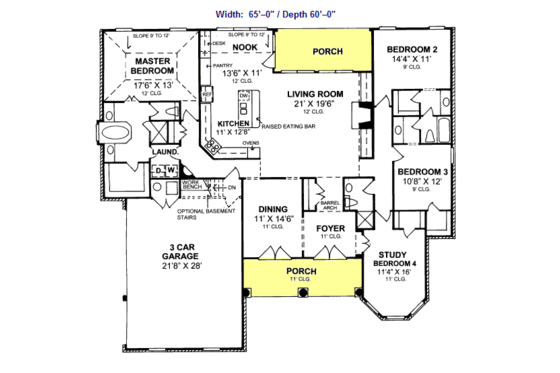

  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1055.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1350.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$195.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$195.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$195.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Browse Similar Plans

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
