Plan #63-215

Key Specs


  • 2444 sq ft

  • 4 Bedrooms

  • 3.5 Bathrooms

  • 2 Floors

  • No Garage
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

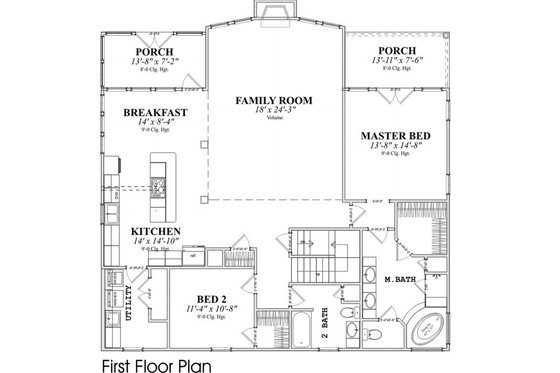

Floor Plan - Main Floor Plan
Contemporary Style House Plan - 4 Beds 3.5 Baths 2444 Sq/Ft Plan #63-215 Floor Plan - Main Floor Plan - Houseplans.com

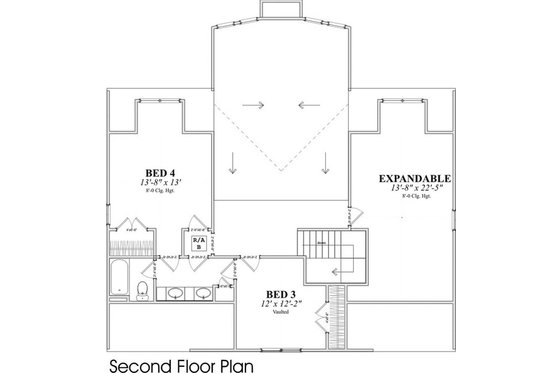

Floor Plan - Upper Floor Plan
Contemporary Style House Plan - 4 Beds 3.5 Baths 2444 Sq/Ft Plan #63-215 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Garage Stalls : 0
Baths : 3.5
Stories : 2
Bedrooms : 4
Potential Bedrooms : 0

Dimension

Height : 41'
Depth : 47'
Width : 47'

Area

Upper Floor Sq Ft : 680 sq ft
Storage Sq Ft : 318 sq ft
Porch Sq Ft : 210 sq ft
Main Floor Sq Ft : 1764 sq ft
Total Sq Ft : 2444 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Upper Ceiling Ft : 8'
Main Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : stick
Roof Load : 30

Exterior Wall Framing

Framing : 2"x4"
Exterior Wall Finish : Siding/Cedar Shake

Bedroom Features

Walk In Closet
Upstairs Bedrooms
Split Bedrooms
Main Floor Bedrooms
In Law Suite
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Kitchen Island

Additional Room Features

Main Floor Laundry
Unfinished Future Space
Storage Area

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Screened Porch Sunroom
Loft Balcony
Covered Rear Porch

More

Suited For Vacation Home

Code Compliance

Irc 2006

Structural Information Provided

Structural 1st Floor Framing
Structural Notes
Structural Roof Framing
Foundation Drawing
Structural 2nd Floor Framing

What's included in this plan set

See a sample plan set

  • Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
  • * Foundation: Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations: Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
  • Floor joist: Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist: Complete with spans, sizes and direction
  • Sections: Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
* Alternate foundations are available. Please call 1-800-913-2350 for pricing and turnaround time *See important information before purchasing

Pricing

Plan Options
5 Copy Set $816.75 5 printed plan sets mailed to you.
8 Copy Set $861.30 8 printed plan sets mailed to you.
PDF Set Best Value! $1039.50 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1039.50 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set $1301.85 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set $648.45 One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options
Pier $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Additional Options
Additional Copies $31.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reverse Sets $31.50/each Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $135.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.
Material List $316.80 A list of building supplies needed to construct the infrastructure of your new house. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

What's included?
Instant Download After Checkout

Subtotal Now $816.75

You save $90.75 (10% savings)

Sale ends on 09/30/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
