Plan 84-571

Photographs may show modified designs.
Plan 84-571

Plan Description


Extraordinary plan has 2 living areas, 5 bedrooms & a garden tub with a separate shower in the master bath. Super narrow plan has a generous kitchen & family area. 4 full baths, spacious bedrooms & extra closets make this plan perfect for a growing family.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

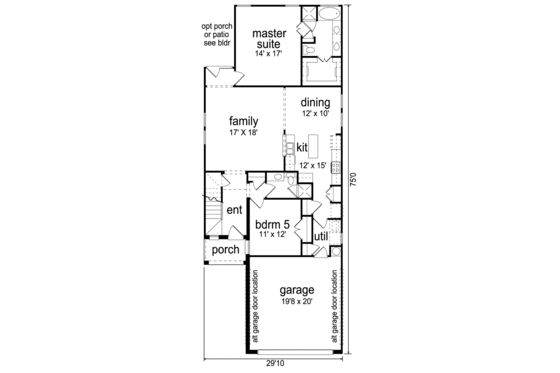

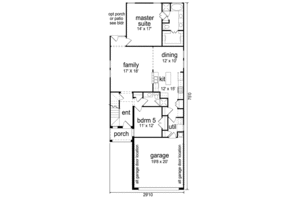

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 4
Stories: 2
Garages: 2

Dimension

Depth : 75'
Height : 28' 4"
Width : 29' 10"

Area

Total : 2450 sq/ft
First Floor: 1489 sq/ft height 9'
Garage: 439 sq/ft
Porch: 50 sq/ft
Second Floor: 961 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master, Bdrm 5, Family, Kitchen, Dining & Garage = 9'Bdrms 2-4 slope to 9'Gameroom slopes to 10'
Main Ceiling : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : gables
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : brick, siding
Framing : 2x4

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

width 12' x depth 12'

Bedroom 3:

width 12' x depth 11'

Bedroom 4:

width 12' x depth 11'

Bedroom 5:

width 11' x depth 12'

Dining:

width 12' x depth 10'

Family Room:

width 17' x depth 18'

Gameroom:

width 16' x depth 13' 6"

Garage:

width 19' 8" x depth 20'

Garage:

439 sq/ft width 19' 8" x depth 20'

Kitchen:

width 12' x depth 15'

Master Bedroom:

width 14' x depth 17'

What's included in this plan set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

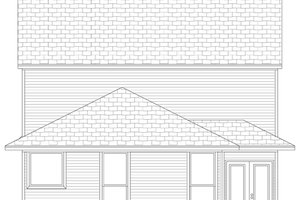

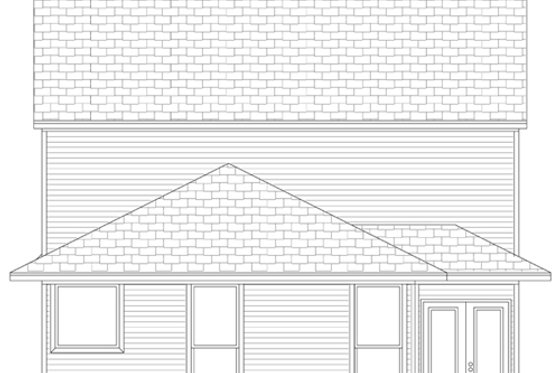

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1000.00
5 printed plan sets mailed to you.

8 Copy Set

$1100.00
8 printed plan sets mailed to you.

Reproducible Set

$1100.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$800.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
