Plan 46-424

Photographs may show modified designs.
Plan 46-424

Key Specs


2454
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

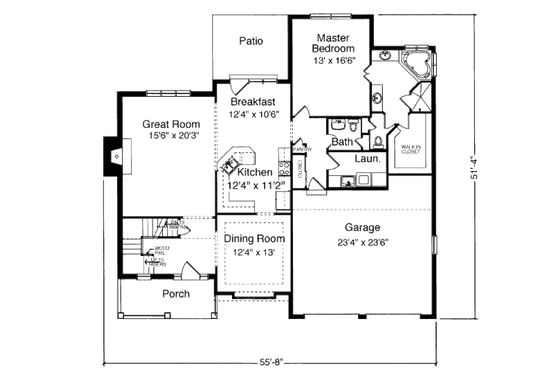

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 51' 4"
Height : 30' 6"
Width : 55' 8"

Area

Total : 2454 sq/ft
First Floor: 1622 sq/ft height 9'
Garage: 503 sq/ft
Porch: 108 sq/ft
Second Floor: 832 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Great Room Living Room
Loft
Storage Area
Unfinished Future Space

Outdoor Spaces

Balcony
Covered Front Porch

Rooms

Balcony:

39 sq/ft width 7' 8" x depth 5' 2"

Bedroom 2:

156 sq/ft width 12' 4" x depth 12' 8"

Bedroom 2 Closet:

18 sq/ft width 8' 8" x depth 2' 1"

Bedroom 3:

160 sq/ft width 12' 4" x depth 13'

Bedroom 3 Closet:

18 sq/ft width 8' 8" x depth 2' 1"

Bedroom 4:

157 sq/ft width 12' 6" x depth 12' 7"

Bedroom 4 Closet:

17 sq/ft width 2' 1" x depth 8' 7"

Breakfast Room:

130 sq/ft width 12' 4" x depth 10' 7"

Coat Closet:

11 sq/ft width 2' 1" x depth 5' 8"

Dining Room:

160 sq/ft width 12' 4" x depth 13'

Foyer:

113 sq/ft width 12' x depth 9' 5"

Garage:

548 sq/ft width 23' 4" x depth 23' 6"

Gathering Room:

313 sq/ft width 15' 6" x depth 20' 3"

Hall Bathroom:

71 sq/ft width 8' 4" x depth 8' 7"

Kitchen:

135 sq/ft width 12' 4" x depth 11'

Laundry Room:

58 sq/ft width 9' 9" x depth 6'

Linen Closet:

8 sq/ft width 2' 8" x depth 3' 3"

Master Bathroom:

123 sq/ft width 10' x depth 12' 4"

Master Bedroom:

214 sq/ft width 13' x depth 16' 6"

Master Closet:

73 sq/ft width 7' 3" x depth 10' 2"

Pantry:

2 sq/ft width 2' 1" x depth 1' 4"

Porch - Front:

107 sq/ft width 16' 2" x depth 6' 8"

Powder Room:

28 sq/ft width 5' 6" x depth 5' 3"

Toilet Closet:

16 sq/ft width 2' 9" x depth 6'

What's included in this plan set


See a sample plan set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

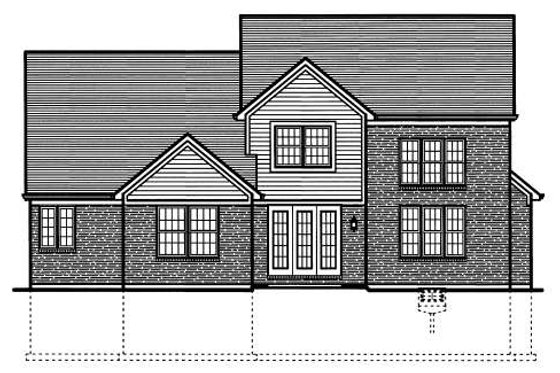

  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
