Plan 430-102

Photographs may show modified designs.
Plan 430-102

Key Specs

sq ft





Plan Description

An elegant brick Acadian-influenced exterior and a spacious front porch welcome you to this terrific open-concept plan. The great room features a gas log fireplace with built-in cabinetry and opens onto the rear porch. A split-bedroom layout grants privacy to the master suite, which displays a beautiful tray ceiling, a spa-like bath with a jet tub, and dual walk-in closets. Three additional bedrooms (one opening to the porch, making it a great spot for a home office) share a bath on the opposite side of the plan. Don’t miss the lockers, pocket office, and big laundry room near the garage entrance.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

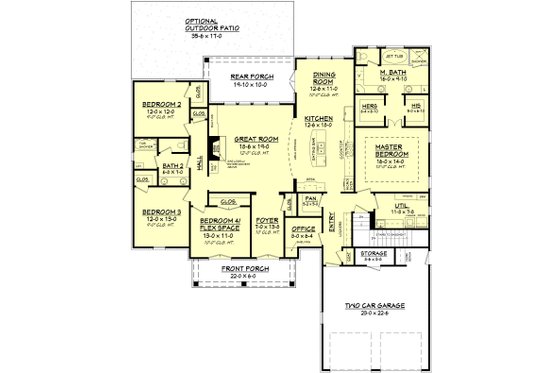

Floor Plan - Main Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 2
Stories: 1
Garages: 2


Depth : 70' 10"
Height : 24' 6"
Width : 65'


Total : 2480 sq/ft
Basement Unfinished: 2480 sq/ft
First Floor: 2480 sq/ft height 9'
Garage: 570 sq/ft
Storage: 38 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling : 9'


Primary Pitch : 8:12
Roof Framing : stick
Roof Load : 40
Roof Type : shingles
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : brick
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Hobby Rec Room Game Room
Mud Room
Play Flex Room
Storage Area

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch


Bath 2:

48 sq/ft width 6' 8" x depth 7'

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

156 sq/ft width 12' x depth 13'

Bedroom 4/ Flex Space:

143 sq/ft width 13' x depth 11'

Covered Front Porch:

132 sq/ft width 22' x depth 6'

Covered Rear Porch:

193 sq/ft width 19' 10" x depth 10'

Dining Room:

138 sq/ft width 12' 6" x depth 11'


96 sq/ft width 7' x depth 13' 8"


570 sq/ft width 23' x depth 22' 6"

Garage Storage:

38 sq/ft width 8' 6" x depth 3' 8"

Great Room:

352 sq/ft width 18' 6" x depth 19'


225 sq/ft width 12' 6" x depth 18'

Master Closet (His):

34 sq/ft width 5' x depth 6' 10"

Master Bath:

157 sq/ft width 16' x depth 9' 10"

Master Bedroom:

224 sq/ft width 16' x depth 14'

Master Closet (Hers):

43 sq/ft width 6' 4" x depth 6' 10"


51 sq/ft width 8' x depth 6' 4"

Optional Patio:

604 sq/ft width 35' 6" x depth 17'


26 sq/ft width 5' 2" x depth 5'

Utility Room:

89 sq/ft width 11' 8" x depth 7' 8"

What's included in this plan set

See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  • Dimensioned Floor Plan – Electrical may be shown.
  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.

*Note: If adding a material list to your order, foundation materials will not be included due to site specific conditions.

*See important information before purchasing


Plan Options


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

5 printed plan sets mailed to you.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Ideal for level lot, single layer concrete poured directly on grade.


Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

Ideal for sloping lot, lower level of home partially underground.

Wood 2x4

Wood 2x4

Wood 2x6

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

A list of building supplies needed to construct the infrastructure of your new house.

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
