beautiful exterior, of siding and stone and a floor plan that includes a great room with 18' ceiling height, formal and informal dining, and a first floor master bedroom suite will delight the most discriminating buyer. The master suite enjoys a whirlpool tub, shower encloser and double bowl vanity. The beautiful staircase decorates the foyer where a grand view to the spacious great room and through to the rear yard is showcased. A butler's pantry offers additional storage to the dining room and the laundry room is conveniently located for entry from the garage and kitchen. A nine foot ceiling height is standard throughout the first floor. The graceful stairs lead to a second floor balcony that overlooks the great room and leads to 3 additional bedrooms. Each bedroom enjoys a walk-in closet and a private bath access.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

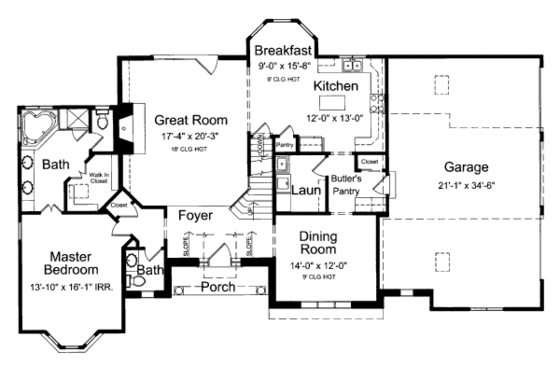

Floor Plan - Main Floor

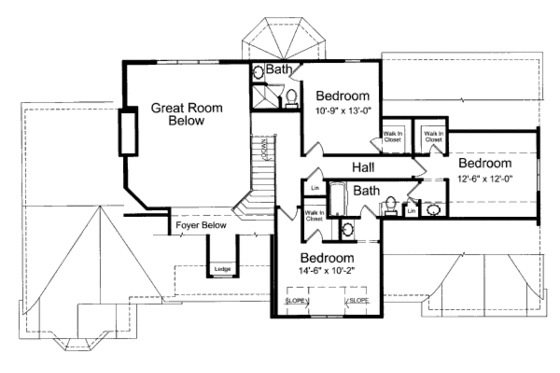

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Basement Unfinished: 1667 sq/ft height 7' 10"
First Floor: 1667 sq/ft height 9'
Second Floor: 877 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Main Floor Master Bedroom
Additional Room Features
Great Room Living Room
Unfinished Future Space
Side Entry Garage
Covered Front Porch
147 sq/ft width 14' 6" x depth 10' 2"
140 sq/ft width 10' 10" x depth 13'
150 sq/ft width 12' 6" x depth 12'
141 sq/ft width 9' x depth 15' 8"
168 sq/ft width 14' x depth 12'
84 sq/ft width 14' x depth 6'
352 sq/ft width 17' 4" x depth 20' 4"
156 sq/ft width 12' x depth 13'
130 sq/ft width 13' x depth 10'
222 sq/ft width 13' 10" x depth 16' 1"
What's included in this plan set
See a sample plan set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
*See important information before purchasing

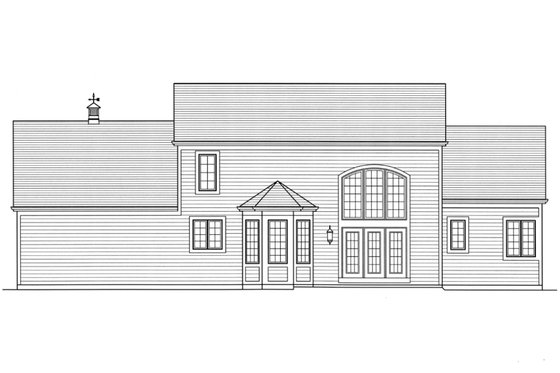

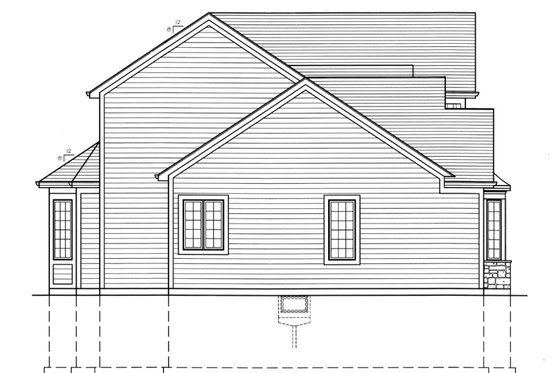

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
