Plan 430-80

Photographs may show modified designs.
Plan 430-80

Key Specs


1849
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description

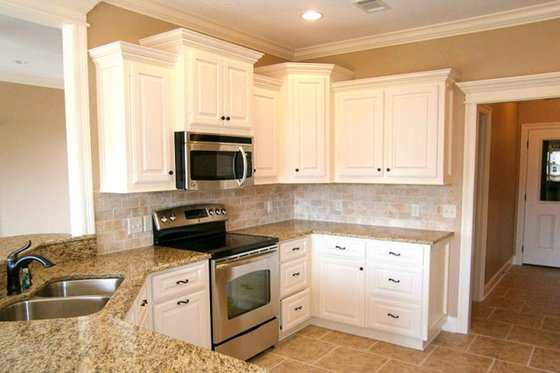

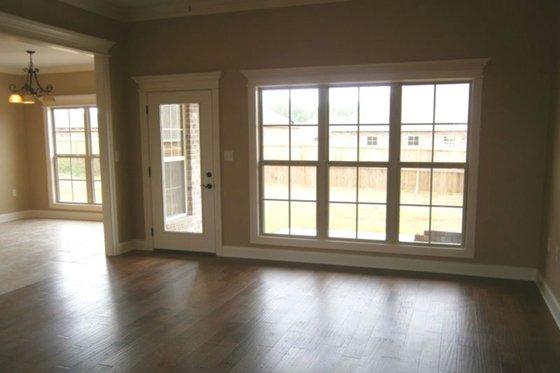

This wonderfully designed home is a homeowner's dream. It was designed with the needs of a growing family in mind. It offers 3 large bedrooms, a flex room which can be used as an office, bedroom, or guest room, and a large rear porch. The great room is open and inviting with raised ceilings, and views into the kitchen, dining area, and rear porch. The kitchen offers a large range, lots of cabinets for storage, and a walk-in pantry. The master suite offers dual sinks, enclosed toilet room, large jet tub, separate shower, and a large his and hers walk-in closet. With all the amenities and many more, this plan is sure to be perfect for you.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

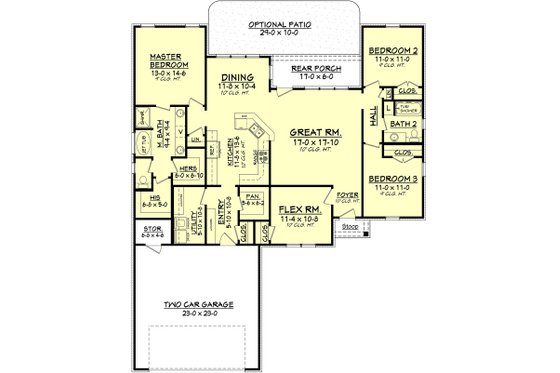

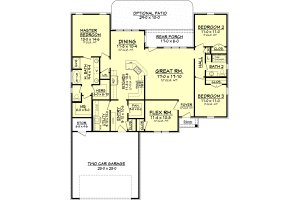

Floor Plan - Main Floor Plan

Reverse
2500 square foot traditional home

Floor Plan - Other Floor Plan

Reverse

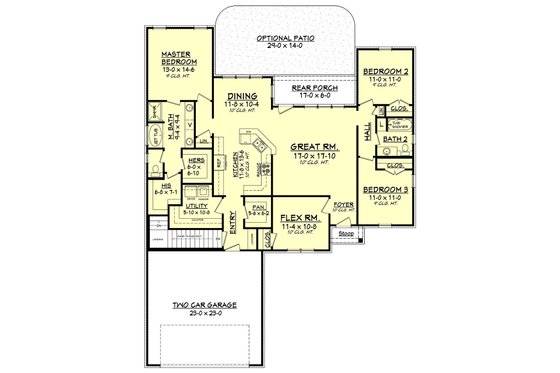

Optional Basement Stair Location

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 65'
Height : 23'
Width : 55'

Area

Total : 1849 sq/ft
Garage : 552 sq/ft
Main Floor : 1849 sq/ft
Porch : 125 sq/ft
Storage : 34 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'
Main Ceiling : 9'

Roof

Primary Pitch : 8/12
Roof Framing : Stick
Roof Load : 40
Roof Type : Shingles
Secondary Pitch : 9/12

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry

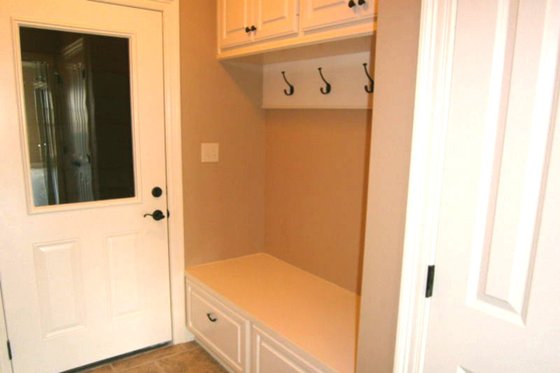

Mud Room
Play Flex Room
Storage Area

Garage Features

Front Entry Garage
Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Economical To Build

What's included in this plan set


See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  • Dimensioned Floor Plan – Electrical may be shown.
  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.

*Note: If adding a material list to your order, foundation materials will not be included due to site specific conditions.

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1145.00
5 printed plan sets mailed to you.

CAD Set

$1795.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$395.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$395.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$195.00
A list of building supplies needed to construct the infrastructure of your new house.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
