Angled plans allow flexibility in placement on a lot - plus a lot more. This home's master bedroom provides a sitting area bathed in sunlight streaming through French doors and a private bath. The vaulted Great Room opens to a spacious kitchen, which has a handy snack counter and a bayed breakfast room. The living room/den easily converts into a guest room and joins the formal dining room in flanking the foyer.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Exterior Elevations: showing the front, rear, and side views with standard and alternate material choices; all elevations are usually ¼" scale.
Foundation plans: separate foundation plans are usually provided for a basement/crawl space, and slab, unless otherwise noted. All are drawn at ¼" scale and include first floor framing information for basement/crawl spaces, including beams, girders, columns and piers. Some plans include walk-out(daylight) basement options as well.

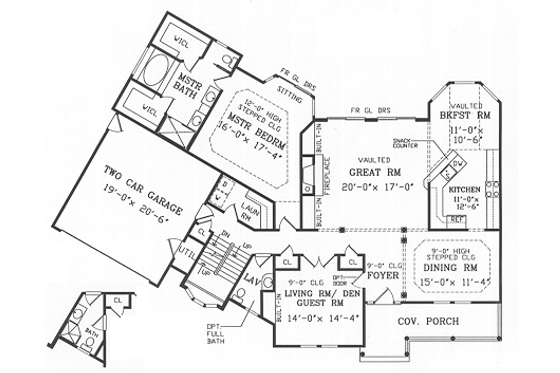

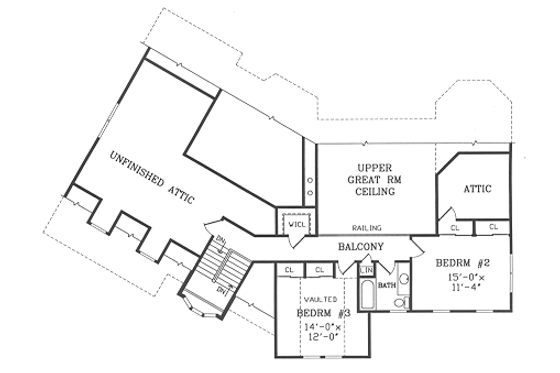

Floor plans: ¼" scale for each floor, including all room dimensions, door and window sizes and locations, stairways, kitchens, baths, etc. Framing information for stick framed ceiling beams and/or second floor framing is included.
Cross sections: ¼" scale cut-away views for each distinct area, showing all framing, ceiling details, heights, roof pitches, etc.
Roof plan: a separate roof plan is usually provided showing all pitches, rafter sizes, valley, hip and ridge locations, and areas of double roof framing.
Schematic electrical: shows suggested locations for outlets, switches and fixtures on either a separate drawing or directly on the floor plans.
Kitchen cabinets: schematic drawings of all kitchen cabinets.
In addition, each blueprint order includes the following extra helpful information:
Specifications: a separate 8 page outline specification of most materials, construction methods and techniques, in a format for customizing; for use in obtaining bids and as a contract document.
Standard details: 2 additional drawing pages filled with standard construction details.
Energy conservation details: 2 more drawing pages chock full of drawings and ideas on how to build to conserve energy.
Making changes: finally we include a separate 6 page primer on choosing a contractor and making changes, as virtually everyone makes some changes in building their home.
