Home > Style > European

Plan 46-472

Key Specs

2594
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

Plan Description

This european design floor plan is 2594 sq ft and has 4 bedrooms and has 2.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

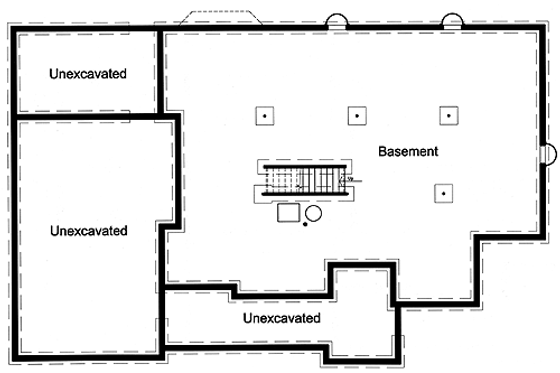

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Main Floor

Reverse

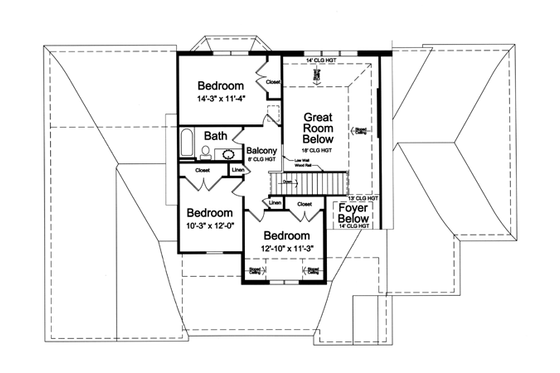

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 2.5

Stories: 2

Garages: 3

Dimension

Depth : 49' 4"

Height : 31' 6"

Width : 75'

Area

Total : 2594 sq/ft

Basement Unfinished: 1895 sq/ft

First Floor: 1895 sq/ft height 9' 1"

Garage: 686 sq/ft

Second Floor: 699 sq/ft height 8' 1"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Roof Type : Shingle

Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

56 sq/ft width 10' 3" x depth 5' 6"

Bedroom 2:

161 sq/ft width 14' 3" x depth 11' 4"

Bedroom 2 Closet:

14 sq/ft width 2' 1" x depth 7'

Bedroom 3:

123 sq/ft width 10' 3" x depth 12'

Bedroom 3 Closet:

16 sq/ft width 7' 11" x depth 2' 1"

Bedroom 4:

144 sq/ft width 12' 10" x depth 11' 3"

Bedroom 4 Closet:

13 sq/ft width 6' 5" x depth 2' 1"

Breakfast Room:

152 sq/ft width 16' x depth 9' 6"

Coat Closet:

7 sq/ft width 3' 5" x depth 2' 1"

Den:

120 sq/ft width 11' 4" x depth 10' 8"

Dining Room:

176 sq/ft width 12' 10" x depth 13' 9"

Family Room:

287 sq/ft width 15' 4" x depth 18' 9"

Foyer:

80 sq/ft width 8' 9" x depth 9' 3"

Garage:

732 sq/ft width 22' 3" x depth 32' 11"

Hall Closet:

8 sq/ft width 4' x depth 2' 1"

Kitchen:

157 sq/ft width 12' 1" x depth 13'

Laundry Room:

81 sq/ft width 10' x depth 8' 2"

Master Bathroom:

187 sq/ft width 8' 7" x depth 21' 10"

Master Bedroom:

192 sq/ft width 12' x depth 16'

Master Closet:

68 sq/ft width 10' 8" x depth 6' 5"

Master Closet Two:

39 sq/ft width 7' 6" x depth 5' 3"

Powder Room:

28 sq/ft width 5' 7" x depth 5' 2"

What's included in this plan set

See a sample plan set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

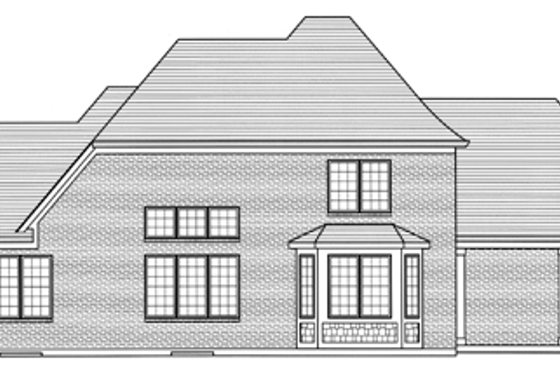

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
Fireplace detail shows how the fireplace is to be built.
Wall section shows typical framing detail of house.

Pricing

Plan Options

Reproducible Set

$845.75

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

PDF Set

Best Value!

$871.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$913.75

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Eight Copy and PDF Set

$939.25

8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1402.50

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD and PDF Set

$4250.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Study Set

$675.75

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$127.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$42.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
