With its open dining room that flows into the kitchen, this plan feels modern and designed for the way families really live. A guest suite invites visitors to stay and relax. Also on this level, the master suite includes a big shower, a tub with a view, and two sinks. Decorative ceiling treatments draw your gaze up, especially in the vaulted family room. Two porches, one with a fireplace and the other screened for inclement weather, invite year-round outdoor living. A bonus room on the second level allows for later expansion.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

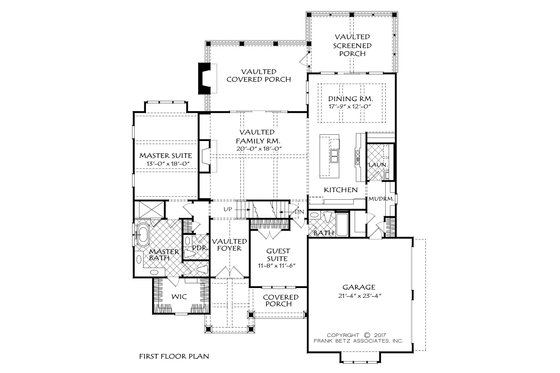

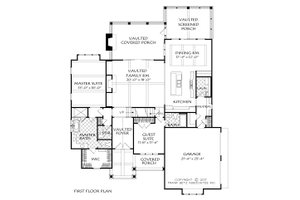

Floor Plan - Main Floor

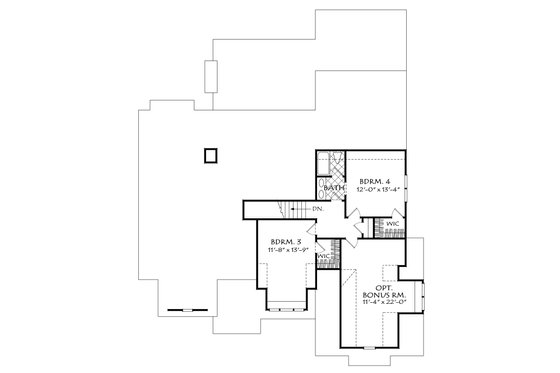

Floor Plan - Upper Floor
Full Specs & Features
Depth : 72' 8"
Height : 28' 6"
Basement Unfinished: 2011 sq/ft
Bonus: 309 sq/ft
First Floor: 2011 sq/ft height 9'
Garage: 526 sq/ft
Second Floor: 588 sq/ft height 9'
