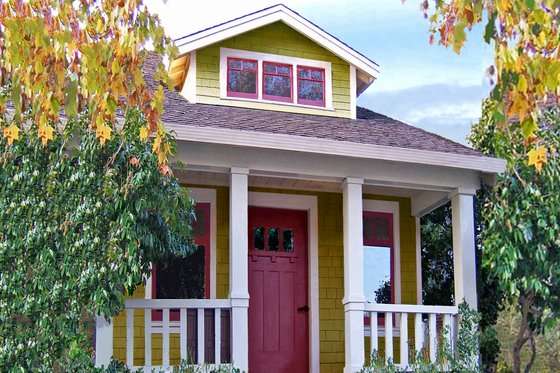

Designed as a very tiny bungalow, this design comes with several options to suit your needs. You can choose between a sleeping loft upstairs, or a cathedral ceiling. We also have a larger version with a downstairs bedroom at the back of the house (See plan 915-10). Designed with simplicity in mind, this home has an abundance of light, and yet is very simply designed.
The kitchen maximizes space and includes a dishwasher, full size range with oven, and built in microwave. The tank-less on demand water heater ensures that you never run out of hot water, and tucks away completely out of view. A small fireplace is tucked nicely in the corner of the great room. The smaller version has a washer/dryer combo in the kitchen, whereas the larger version has a stack-able washer and dryer closet.
We don't count the loft as square footage in this house because with so much sloped ceiling, it doesn't officially qualify as a habitable room. Subsequently, the loft can add over 100 feet of usable space, and it is accessed by a drop down stair ladder. At its highest point the loft is 6' 4" tall, which encompasses over 50 square feet of space.
This house is not designed to be portable, but comes with a poured concrete perimeter foundation. However, it is possible to put this house on a slab foundation or even over a basement. However, you may need to work with an architect or engineer licensed in your state to get approval from the building department.
When you purchase these plans, you'll receive 2 sets, each containing 13 total pages
A complete set of plans with a cathedral ceiling over the main room
A complete set of plans with a full loft over the main room
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

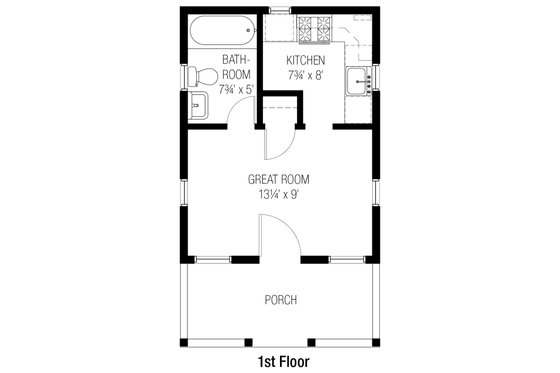

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Depth : 24'
Height : 16' 10"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 7' 6"
Upper Ceiling Ft : 6' 4"
Primary Pitch : 6:12
Roof Framing : Stick
Exterior Wall Framing
Exterior Wall Finish : Clap Board or Metal Siding
Framing : 2x4
Economical To Build
Suited For Vacation Home
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
Floor Plans: Detailed floor plans for both the downstairs and loft include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.

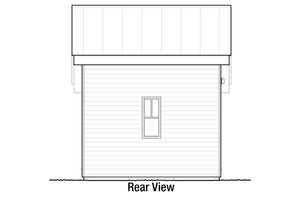

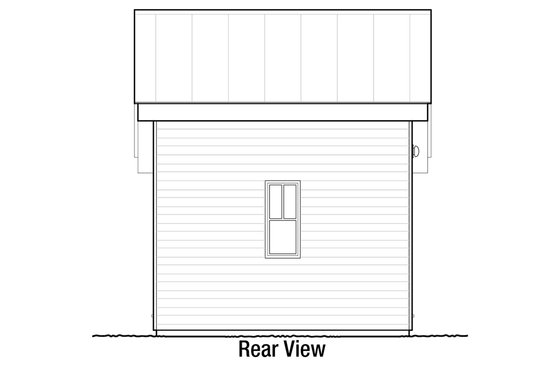

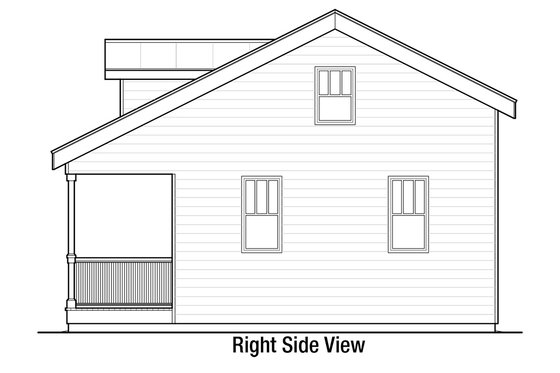

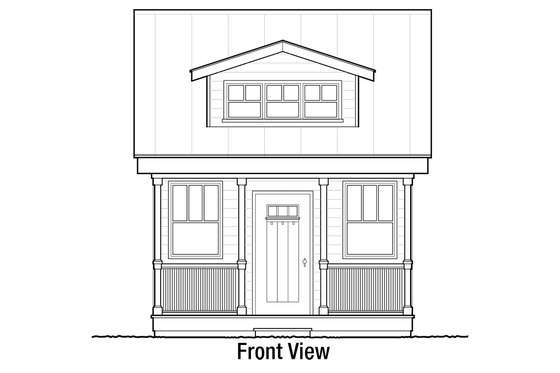

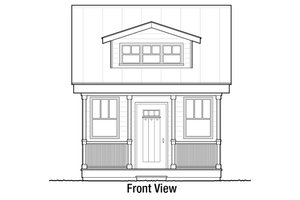

Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Siding and facia boards are called out.
Electric Plans: These pages include both the main floor and loft and show locations for outlets, light switches and lights.
Transverse Section: Perhaps one of the most important pages on any set of plans, the transverse section cuts the house in half and shows details such as wall thickness, roofing material details, flooring details, roof pitch, ceiling heights, and insulation.
Foundation Plan: Included is the floor framing, showing the exact location of each joist and calling out pressure treated joists as needed.
Framing Plans: These plans show the framing for all 4 walls, gables and lay out the exact location of each stud.
Roof Plan: Showing the birds-eye view of the house, you see the slopes and pitches clearly called out, as well as the amount of overhang, and individual rafter locations from above for both the roof and porch.
Interior Elevations: We include elevation drawings for all the interior walls, showing what the cabinetry, shelving, interior walls, and window locations look like from the inside. Detailed drawings on the custom shelving, often with 3D assembly views, explain exactly how to build your house.
This pan set is formatted to print on 8 1/2" x 11" paper
Square Footage: The square footage listed is an estimate. The square footage we list includes the applicable floors. It does not include the loft or porch.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
