Plan #915-3

Key Specs


  • 261 sq ft

  • 1 Bedroom

  • 1 Bathroom

  • 1 Floor

  • No Garage

Plan Description

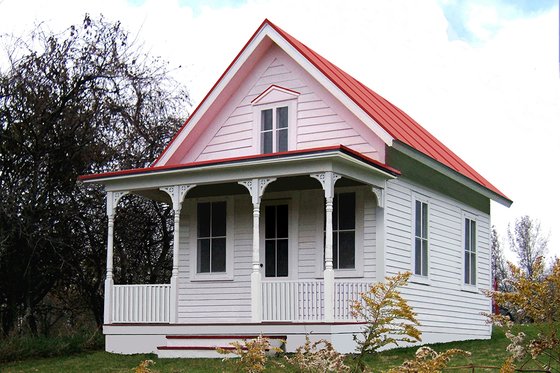

This cozy cottage has a fireplace, a full bath, kitchen and also has the option for an add on bedroom (See plan 915-4). Designed with cost savings in mind, this green design is proportioned just right. Charming and bright, the simple use of space and building materials keeps construction costs low without sacrificing design. The plans come with an option for a full loft over the great room, kitchen and bathroom, or a 1/2 loft with a cathedral ceiling over the great room. We don't count the loft as square footage in this house because with so much sloped ceiling, it doesn't officially qualify as a habitable room. Subsequently, with seven feet of ceiling height over more than 50 square feet, the loft provides a lot of usable space. The loft is accessed by a ladder in the kitchen. The kitchen maximizes space and includes a dishwasher, full size range with oven, and built in microwave. The tank-less on demand water heater ensures that you never run out of hot water, and tucks away completely out of view. A small fireplace is tucked nicely in the corner of the great room. The smaller version has a washer/dryer combo in the kitchen, whereas the larger version has a stack-able washer and dryer closet. This house is not designed to be portable and comes with a a raised perimeter foundation. However, it is possible to put this house on a slab foundation or even over a basement When you purchase these plans, you'll receive 2 sets, each include 13 total pages: A complete set of plans with a cathedral ceiling over the main room A complete set of plans with a full loft over the main room
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

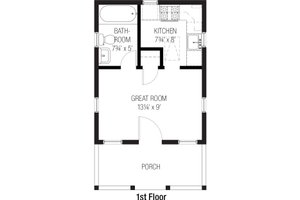

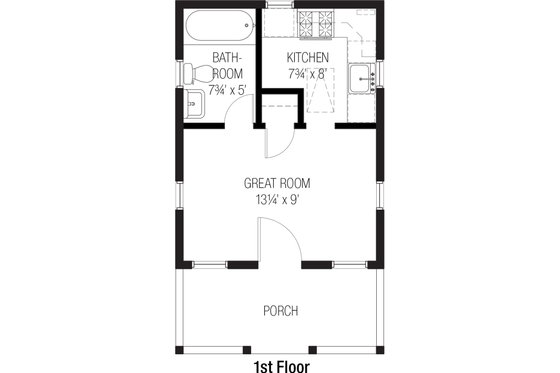

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Baths : 1
Stories : 1
Bedrooms : 1
Garage Stalls : 0

Dimension

Depth : 24'
Height : 18' 4"
Width : 14'

Area

Main Floor Sq Ft : 261 sq ft
Total Sq Ft : 261 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Upper Ceiling Ft : 7' 6"
Main Ceiling Ft : 7' 6"

Roof

Primary Pitch : 12:12
Roof Framing : Stick

Exterior Wall Framing

Framing : 2x4
Insulation : R11
Exterior Wall Finish : Clap Board or Metal Siding

Additional Room Features

Great Room Living Room

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Suited For Vacation Home
Economical To Build

What's included in this plan set

See a sample plan set

  • Floor Plans: Detailed floor plans for both the downstairs and loft include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.

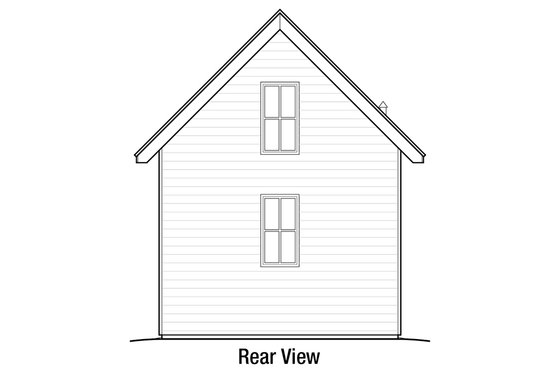

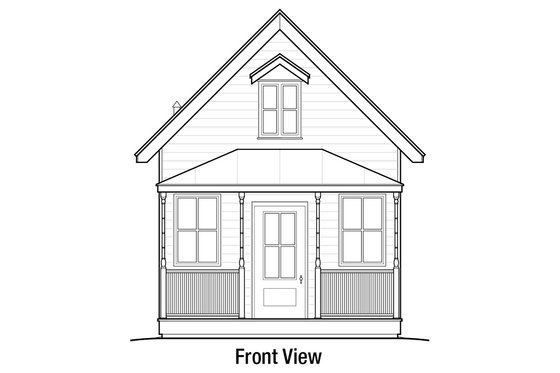

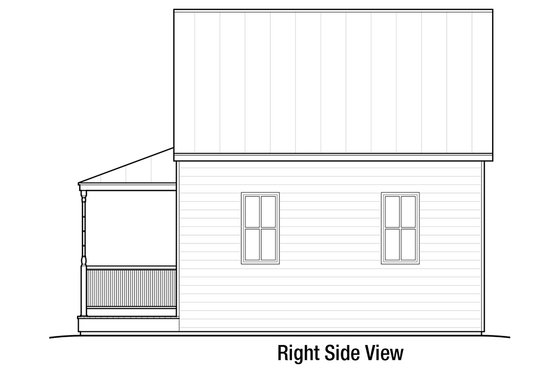

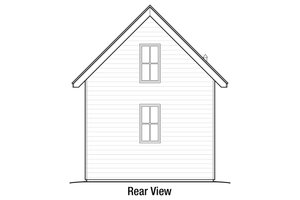

  • Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Siding and facia boards are called out.
  • Electric Plans: These pages include both the main floor and loft and show locations for outlets, light switches and lights.
  • Transverse Section: Perhaps one of the most important pages on any set of plans, the transverse section cuts the house in half and shows details such as wall thickness, roofing material details, flooring details, roof pitch, ceiling heights, and insulation.
  • Foundation Plan: Included is the floor framing, showing the exact location of each joist and calling out pressure treated joists as needed.
  • Framing Plans: These plans show the framing for all 4 walls, gables and lay out the exact location of each stud.
  • Roof Plan: Showing the birds-eye view of the house, you see the slopes and pitches clearly called out, as well as the amount of overhang, and individual rafter locations from above for both the roof and porch.
  • Interior Elevations: We include elevation drawings for all the interior walls, showing what the cabinetry, shelving, interior walls, and window locations look like from the inside. Detailed drawings on the custom shelving, often with 3D assembly views, explain exactly how to build your house.
  • This pan set is formatted to print on 8 1/2" x 11" paper

Other Notes:
  • Square Footage: The square footage listed is an estimate. The square footage we list includes the applicable floors. It does not include the loft or porch.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $759.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set $1259.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options
Pier Post Beam $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
