Plan 897-1

Key Specs


261
sq ft

1
Beds

1
Baths

1
Floors

0
Garages

Plan Description


The cabin is the tiny house version of the floating modern box. Raising the cabin on a pier foundation eliminates the need for a costly concrete slab and allows the landscape to flow underneath making this design ideal for sloped and uneven sites. The cabin can also be easily adapted to modular prefab building for delivery to remote locations. With the correct solar orientation a passive solar design can be achieved utilizing the deck canopy and slated wing walls to shade during hot summer months. The large deck and bank of sliding glass doors expand the interior living space to support a interior/outdoor lifestyle making the cabin excellent for relaxing and enjoying the view.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

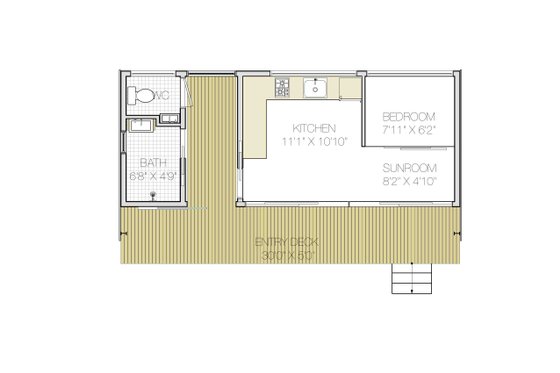

Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 17'
Height : 12'
Width : 30'

Area

Total : 261 sq/ft
Decks : 201 sq/ft
Main Floor : 261 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 0.5:12
Roof Framing : Flat Truss
Roof Type : TPO Membrane

Exterior Wall Framing

Exterior Wall Finish : Wood Slats & Plywood
Framing : 2x6
Insulation : R-21

Garage Features

Detached Garage

Lot Characteristics

Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Suited For Vacation Home

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$500.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$575.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$725.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Pier

$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer - Framework Design Collective
