Home > Style > Craftsman

Plan 929-827

Key Specs

2634
sq ft

4
Beds

3
Baths

1
Floors

1
Garages

Plan Description

Multiple gables, a shed dormer and mixed materials give this home true Craftsman appeal. The foyer, dining room and great room are all open to one another, granting a spacious feel to the plan. Columns punctuate the entrance into each room, and the great room’s cathedral ceiling, fireplace and built-ins showcase custom details. Angled countertops in the kitchen double as a serving bar, while an adjacent breakfast room becomes the ultimate place to dine during casual meals. Note the oversized pantry and nearby closets. The secondary bedrooms share a bath and are positioned for privacy. A flexible bedroom/study has its own bathroom, a vaulted ceiling and two closets. The master suite is truly luxurious with a tray ceiling, dual walk-in closets, porch access and a large master bath.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

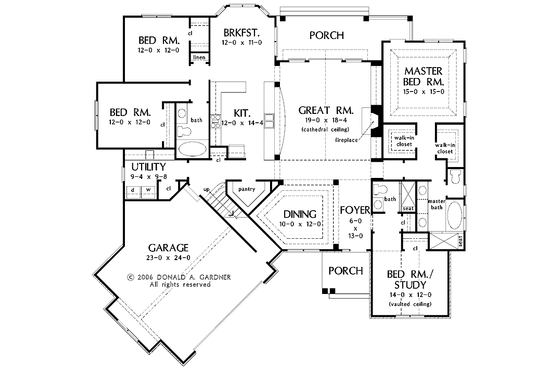

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 3

Stories: 1

Garages: 1

Dimension

Depth : 67' 4"

Height : 27' 9"

Width : 69'

Area

Total : 2634 sq/ft

Bonus: 381 sq/ft

First Floor: 2634 sq/ft height 9'

Garage: 661 sq/ft

Porch: 261 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Great Room Living Room

Unfinished Future Space

Vaulted / Cathedral Ceilings

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

61 sq/ft width 6' x depth 10' 4"

Bathroom 3:

45 sq/ft width 8' x depth 5' 8"

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 2 Closet:

21 sq/ft width 3' 4" x depth 6' 4"

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 3 Closet:

16 sq/ft width 2' x depth 8' 4"

Bedroom 4:

168 sq/ft width 14' x depth 12'

Bedroom 4 Closet:

14 sq/ft width 4' 8" x depth 3'

Bonus Room - Unfinished:

336 sq/ft width 14' x depth 24'

Breakfast Room:

132 sq/ft width 12' x depth 11'

Closet:

6 sq/ft width 3' x depth 2'

Coat Closet:

7 sq/ft width 2' 4" x depth 3' 4"

Dining Room:

120 sq/ft width 10' x depth 12'

Foyer:

78 sq/ft width 6' x depth 13'

Garage:

552 sq/ft width 23' x depth 24'

Garage Storage:

69 sq/ft width 8' 4" x depth 8' 4"

Great Room:

348 sq/ft width 19' x depth 18' 4"

Kitchen:

144 sq/ft width 12' x depth 12'

Linen Closet:

5 sq/ft width 3' 4" x depth 1' 8"

Master Bathroom:

80 sq/ft width 8' 8" x depth 9' 4"

Master Bedroom:

225 sq/ft width 15' x depth 15'

Master Closet:

37 sq/ft width 6' x depth 6' 4"

Master Closet Two:

31 sq/ft width 5' x depth 6' 4"

Pantry:

49 sq/ft width 8' x depth 6' 2"

Porch - Front:

65 sq/ft width 8' 4" x depth 7' 10"

Porch - Rear:

163 sq/ft width 19' 8" x depth 8' 4"

Utility Room:

12 sq/ft width 3' 8" x depth 3' 4"

What's included in this plan set

See a sample plan set

This designer charges $49.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.

Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

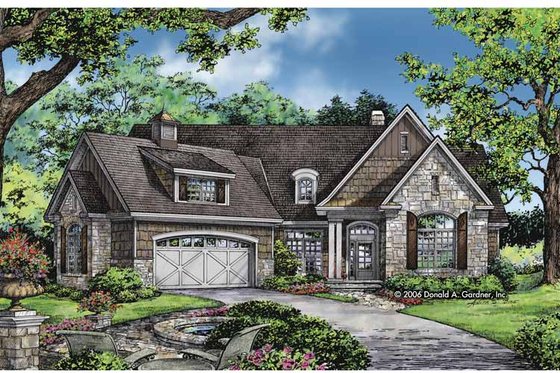

Cover Sheet - A rendering of the front exterior of the house.
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.

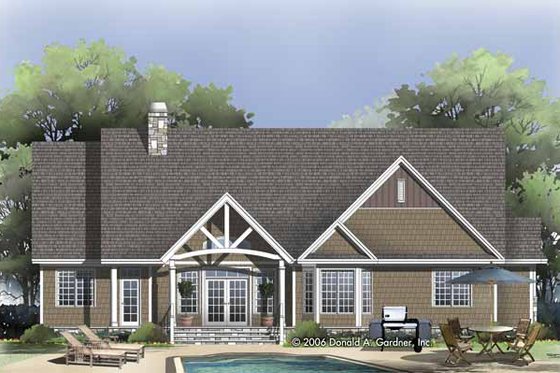

Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.

Pricing

Plan Options

PDF Set

Best Value!

$1395.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$2452.50

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$1215.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$342.00

Ideal for level lot, lower level of home partially or fully underground.

Slab

$342.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

Wood 2x6

$342.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$207.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$90.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$270.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
