Plan Description

As you walk through the front door and into the foyer, you’ll find a conveniently situated closet and half bathroom to the left. The foyer opens into a large vaulted great room that features a beautiful picture window – perfect for framing your Christmas tree or holiday decorations. The great room transitions into a large kitchen and dining area with ready access to the back porch and patio. The kitchen itself features a large island with plenty of room for cooking and family dinners. A large walk-in pantry attached to the kitchen gives you ample space for dry goods and kitchen tools. Just off the living area, you’ll find the stairwell leading upstairs, a mud room and a laundry area. The mud room provides access to both the garage and the front of the home. With a bench and coat closet, you’ll find that this space makes it easy to confine the mess from muddy shoes and outdoor apparel. The laundry area is placed so that you have easy access both the upper bedrooms and the kitchen. The master bedroom and home office are on the opposite end of the home, which allows for plenty of privacy. Within the master bedroom, you’ll find large windows that give the room a bright, fresh feeling. The master bathroom is compact, yet it features the luxuries you desire. You’ll find a spa bath, walk-in shower, his-and-her sinks and an enclosed toilet. Through the doorway opposite the sinks is a large walk-in closet that places clothing and accessories within easy access on those busy weekday mornings. Moving upstairs, there are two bedrooms, a bathroom and a large bonus room. The two bedrooms make great spaces for your children. The bathroom features an efficient design two sinks, which reduces the time your kids will spend waiting as they get ready for school. The bonus room gives you many possibilities. Use this room as an additional bedroom, guest bedroom, a secondary home office or a studio. With large windows and built-in closet space, this room has lots of natural lighting and plenty of storage space for a variety of activities.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

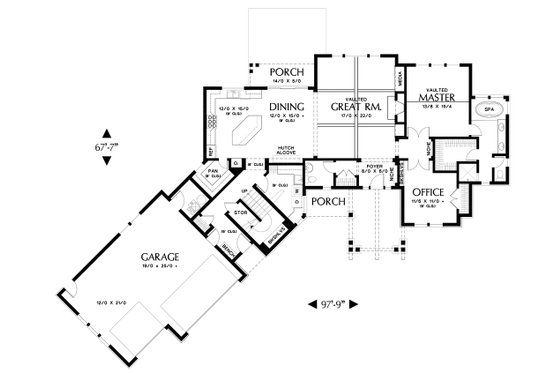

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2.5

Stories: 2

Garages: 3

Dimension

Depth : 67' 6"

Height : 24' 11"

Width : 97' 9"

Area

Total : 2637 sq/ft

Bonus: 432 sq/ft

First Floor: 2039 sq/ft height 9'

Garage: 819 sq/ft

Second Floor: 598 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 9/12

Roof Framing : Truss / Stick Combination

Roof Load : 25 p.s.f.

Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Play Flex Room

Storage Area

Garage Features

Front Entry Garage

Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

146 sq/ft width 11' 6" x depth 12' 8"

Bedroom 3:

148 sq/ft width 11' 8" x depth 12' 8"

Covered Rear Porch:

70 sq/ft width 14' x depth 5'

Dining Area:

180 sq/ft width 12' x depth 15'

Foyer:

48 sq/ft width 8' x depth 6'

Great Room:

374 sq/ft width 17' x depth 22'

Kitchen:

180 sq/ft width 12' x depth 15'

Master Bedroom:

210 sq/ft width 13' 8" x depth 15' 4"

Office:

127 sq/ft width 11' 6" x depth 11'

One Car Garage:

252 sq/ft width 12' x depth 21'

Opt. Bonus Room Dormer:

48 sq/ft width 8' x depth 6'

Optional Bonus Room:

323 sq/ft width 17' x depth 19'

Two Car Garage:

475 sq/ft width 19' x depth 25'
