Arts and Crafts style defines this charming and spacious bungalow. Substantial stone columns and open timber rafters create a stunning front entry. Inside, no detail has been overlooked. Enter the foyer with hipped tray ceiling, and find a convenient and flexible study/bedroom, complete with window seat and full bath access. Continuing on, tiered built-ins make efficient use of space under the front stair. Decorative columns and a twelve-foot tray ceiling define the dining room, which opens into a spacious great room with fireplace, low built-ins and soaring coffered ceiling. This space flows seamlessly into the roomy kitchen with generous island. The breakfast area is defined by a curved bank of windows, and opens to a convenient e-space by way of a pass-through. A mud room with bench, coat closet and reach-in pantry adds convenience for families. At the rear of the house, the luxurious master suite offers a sitting nook, dressing area, large walk-in closets and a bath with separate vanities and unique round soaking tub. Outside, an enormous covered patio with summer kitchen and fireplace is the perfect place to entertain.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

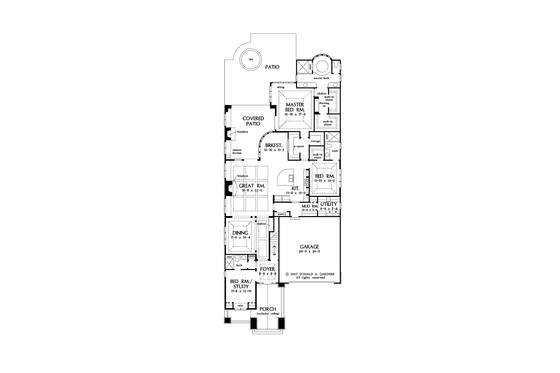

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Depth : 109' 5"
Height : 32' 8"
Bonus: 497 sq/ft height 10'
First Floor: 2733 sq/ft height 10'
Garage: 646 sq/ft height 10'
Porch: 626 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Formal Dining Room
Covered Front Porch
165 sq/ft width 11' 10" x depth 14'
149 sq/ft width 11' 8" x depth 12' 10"
Bonus Room - Finished:
288 sq/ft width 16' 6" x depth 17' 6"
120 sq/ft width 10' 10" x depth 11' 2"
130 sq/ft width 11' 6" x depth 11' 4"
75 sq/ft width 8' 8" x depth 8' 8"
624 sq/ft width 24' x depth 26'
410 sq/ft width 18' 8" x depth 22'
177 sq/ft width 13' 8" x depth 13'
252 sq/ft width 14' 10" x depth 17'
56 sq/ft width 10' 8" x depth 5' 4"
66 sq/ft width 8' 8" x depth 7' 8"
What's included in this plan set
See a sample plan set
*See important information before purchasing
This designer charges $49.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
Cover Sheet - A rendering of the front exterior of the house.
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
