Ideal for a sloping lot, this 2,741-square-foot design features plenty of space on the lower level for fun and guests. On the main level, an open-concept layout makes it easy to move between the island kitchen, the relaxed dining area, the great room, and out to the screened porch.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

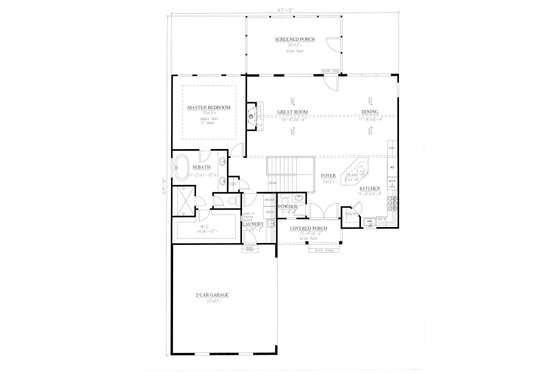

Floor Plan - Main Floor Plan

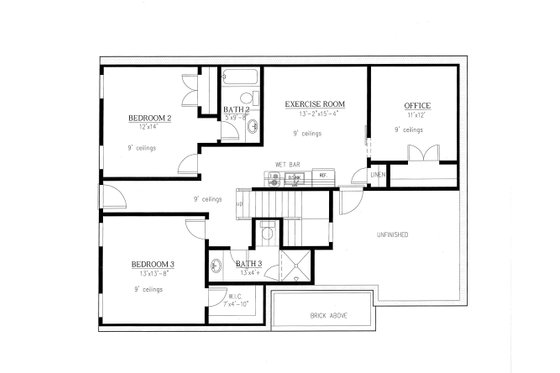

Floor Plan - Lower Floor Plan
Full Specs & Features
Depth : 69' 8"
Height : 21'
Basement : 339 sq/ft
Garage : 499 sq/ft
Lower Floor : 1201 sq/ft
Main Floor : 1540 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Vaulted Great Room & Dining Room; Single 1' tray ceiling in Master Bedroom
Lower Ceiling : 9'
Roof Framing : Truss
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2 x 4
Lower Level Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch
Covered Rear Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Walk Out Basement
Ideal for a sloping lot, lower level with outdoor access.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Receive an overlay sheet with suggested placement of lighting fixtures.
Choose this option to reverse your plans and to have the text and dimensions readable.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
