Multiple gables, fieldstone and mixed sidings correctly blend to create a charming example of the Modern Farmhouse style. A wide front porch welcomes all to come visit. Large window groupings flood the interior with natural light. The outdoor area is accessible via the large deck or patio as well as the covered porch with a built-in grill area. The main level is open and spacious and loaded with modern amenities. The kitchen is well appointed and serves the dining and living areas with ease. The family room has a beamed ceiling and a warming fireplace and opens onto the rear porches. The master suite is on the main level for privacy and convenience. The master bath features a soaking tub and large shower and ample closet space. The flex room has many uses such as a formal dining room, parlor or home office. The mudroom, pantry and laundry areas are properly sized to serve a large family. The upper level contains three additional bedrooms, each with a walk-in closet and access to a bath. The optional bonus room can be finished for extra storage, recreation space or a media room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

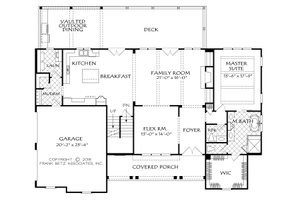

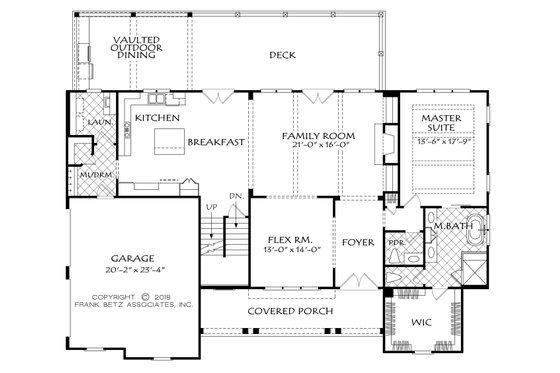

Floor Plan - Main Floor Plan

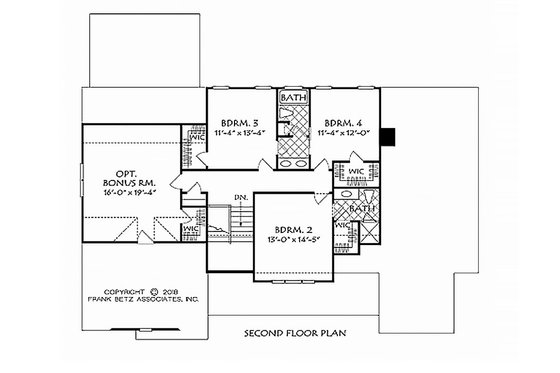

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Depth : 54'
Height : 32' 6"
Basement : 1877 sq/ft
Bonus : 356 sq/ft
Garage : 512 sq/ft
Main Floor : 1877 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Beamed ceiling in Family Room; beamed tray ceiling in Master Bedroom; vaulted rear porch.
Main Ceiling : 9'
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2 x 4
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath
What's included in this plan set
See a sample plan set
*See important information before purchasing
Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for sloping lot, lower level of home partially underground.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
