Plan 413-841

Photographs may show modified designs.
Plan 413-841

Key Specs


2877
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

Plan Description


Here’s a charming Craftsman Bungalow style open floor plan loaded with popular features, starting downstairs with an island kitchen with butlery and large walk-in pantry, a large great room, formal dining room, an office, and flex space ideal for either a study or guest room. Upstairs you’ll find a large owner’s suite, laundry room and future playroom. The attached garage offers 3-car dimensions, and the plan also features options for a basement and covered deck.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

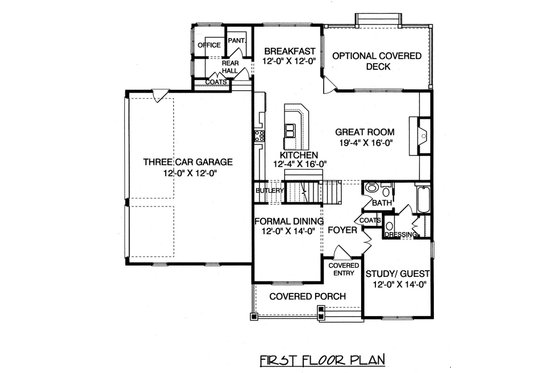

Floor Plan - Main Floor Plan

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 3

Dimension

Depth : 53'
Height : 33'
Width : 55'

Area

Total : 2877 sq/ft
Bonus : 257 sq/ft
Garage : 719 sq/ft
Main Floor : 1472 sq/ft
Porch : 354 sq/ft
Upper Floor : 1405 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 20'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Play Flex Room
Storage Area
Unfinished Future Space

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1800.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2600.00
5 printed plan sets mailed to you.

CAD Set

$2600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$200.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$400.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$600.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
