Plan 51-1162

Photographs may show modified designs.
Plan 51-1162

Key Specs


Plan Sq Ft

2925
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description

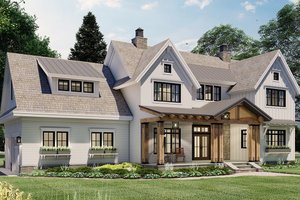

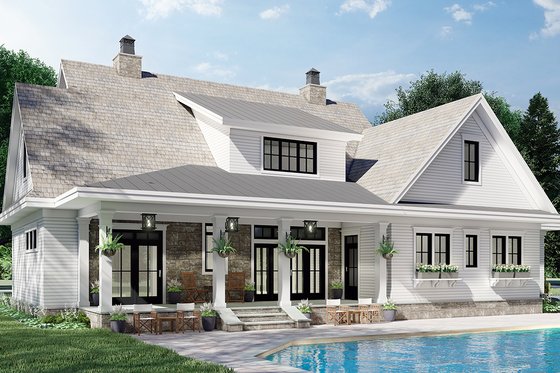

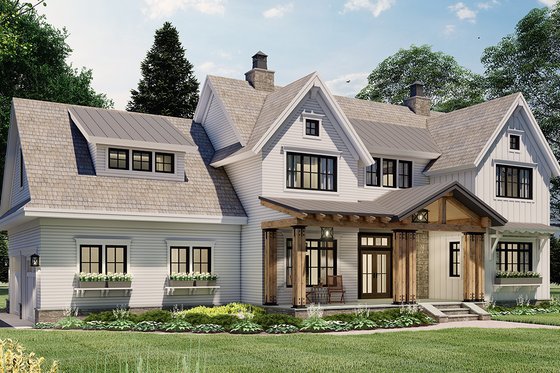

The stunning exterior of this 2925 sq ft 2-story home will be the envy of all your neighbors! This beautiful Modern Farmhouse has everything a growing family will need! It holds 4 bedrooms, 3 ½ bathrooms and optional front or side loading garage. The optional 376 sq ft bonus room over the garage is perfect as a game room or additional storage area. Step into your new home from the welcoming covered front porch and you’ll be entering an open family friendly living area that holds the great room, kitchen and dining area. The 2-story great room boasts a cozy fireplace flanked by beautiful built-ins and access to the covered rear porch through sliding doors. The generous center island has great views of the fireplace, built-in sink and dishwasher, plus seating for 5, making it the perfect spot to talk with friends while having them try your new recipes! Behind the sliding barn door you’ll find a walk-in pantry with plenty of built-in shelving for all your storage needs. The dining area features a built-in buffet and large airy window, making it an appealing place for family dinner or a quick lunch. At the end of the day retire to your lower level master suite. The bedroom has plenty of space for a comfortable sitting area and sliding door access to the rear porch. A bathroom with dual vanities, private toilet area and separate soaking tub and shower, plus his and hers walk-in closets complete the suite. On the second level you’ll find an additional three bedrooms, two of which are separated by a Jack and Jill bathroom. The spacious loft overlooks the great room below, a perfect space for game night or curling up with a good book. Other key features of this exceptional home include a washer/dryer conveniently located on the second level, a mudroom/laundry off the garage with built-ins and large utility sink, and a resource room with built-in L-shaped desk and access to the rear porch for when you need a break. All things considered, this home is perfect for the empty nester, the growing family and anything in between!
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

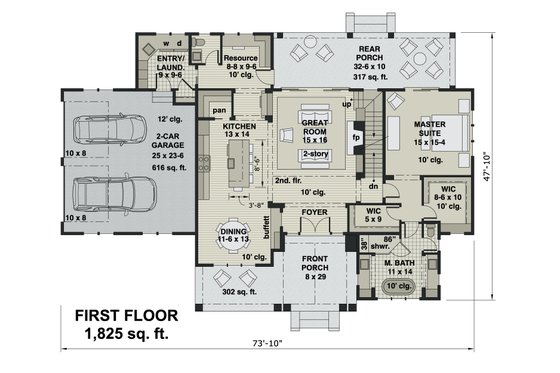

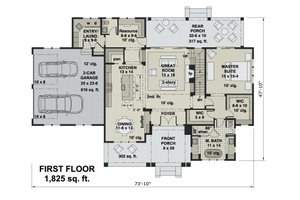

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 47' 10"
Height : 32' 9"
Width : 73' 10"

Area

Total : 2925 sq/ft
Bonus : 376 sq/ft
Garage : 616 sq/ft
Main Floor : 1825 sq/ft
Porch : 302 sq/ft
Upper Floor : 1100 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9'
Garage Ceiling : 12'
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Type : trusses
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : siding
Framing : 2 x6

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Mud Room
Play Flex Room
Unfinished Future Space
Upstairs Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1845.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2025.00
5 printed plan sets mailed to you.

5 Copy and PDF Set

$2115.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

8 Copy Set

$2115.00
8 printed plan sets mailed to you.

CAD Set

$2430.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$585.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$360.00
Ideal for level lot, lower level of home partially or fully underground.

Slab

$360.00
Ideal for level lot, single layer concrete poured directly on grade.

Walk Out Basement

$360.00
Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$180.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$67.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
