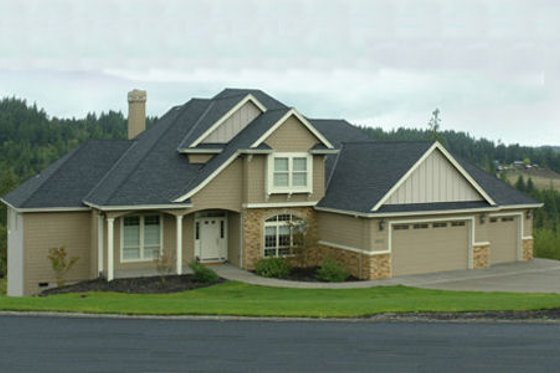

Craftsman Style House Plan - 3 Beds 2.5 Baths 2986 Sq/Ft Plan #48-116 Exterior - Other Elevation

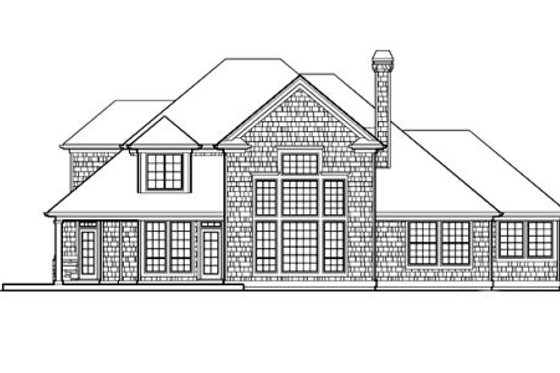

Craftsman Style House Plan - 3 Beds 2.5 Baths 2986 Sq/Ft Plan #48-116 Exterior - Rear Elevation

Plan 48-116

Photographs may show modified designs.

Key Specs

2986
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$175.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $45.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$100.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1705.00

Or order by phone: 1-800-913-2350

Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Questions?

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours Mon‑Fri, 9 am‑8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

Plan 48-116

Key Specs

2986
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

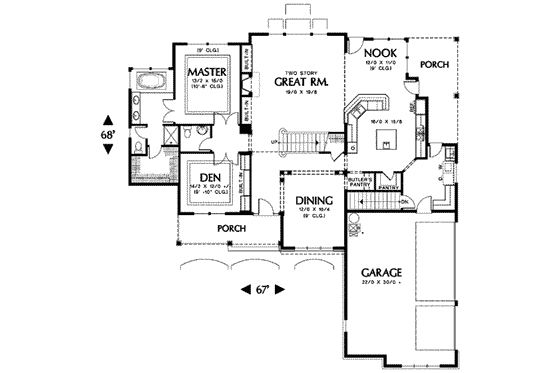

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2.5

Stories: 2

Garages: 2

Dimension

Depth : 68'

Height : 30'

Width : 67'

Area

Total : 2986 sq/ft

First Floor: 2207 sq/ft

Second Floor: 824 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

128 sq/ft width 12' x depth 10' 8"

Bedroom 3:

137 sq/ft width 12' 6" x depth 11'

Breakfast Room:

132 sq/ft width 12' x depth 11'

Den/Office or Bedroom 1:

170 sq/ft width 14' 2" x depth 12'

Dining Room:

191 sq/ft width 12' 6" x depth 15' 4"

Game Room:

137 sq/ft width 12' 6" x depth 11'

Garage:

638 sq/ft width 22' x depth 29'

Gathering Room:

373 sq/ft width 19' x depth 19' 8"

Kitchen:

250 sq/ft width 16' x depth 15' 8"

Master Bedroom:

210 sq/ft width 13' 2" x depth 16'

What's included in this plan set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
