Plan 928-249

Key Specs


Plan Sq Ft

2990
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

1
Garages

Plan Description

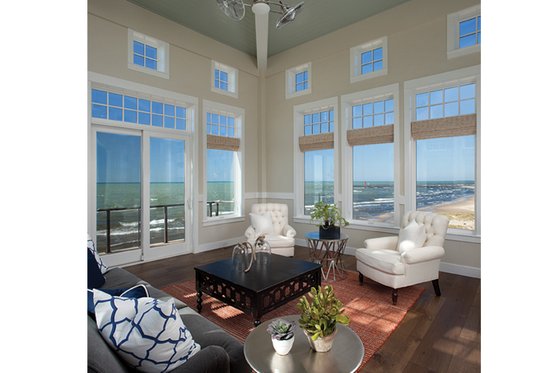

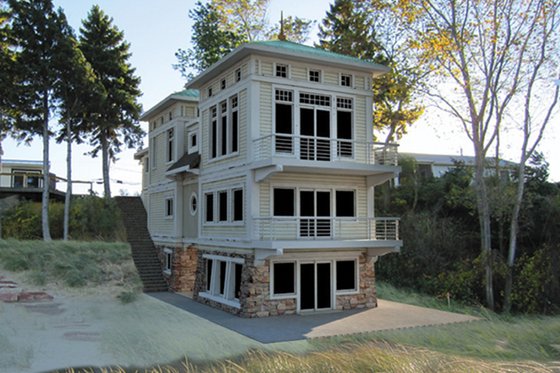

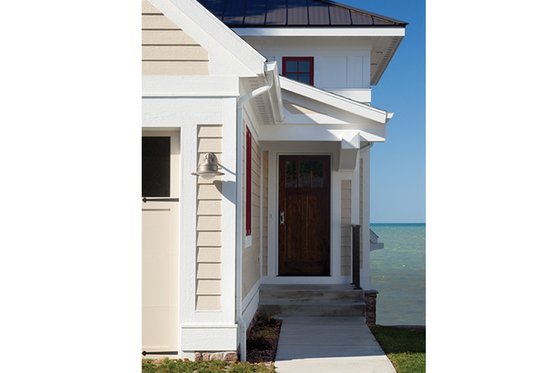

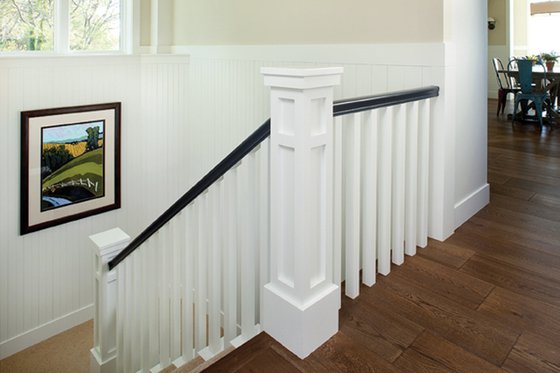

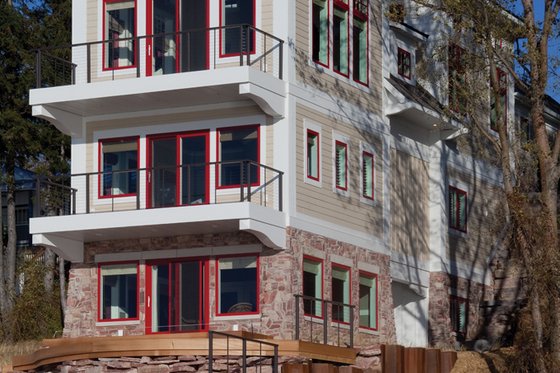

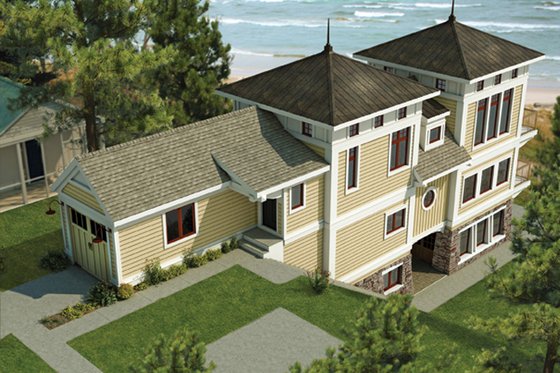

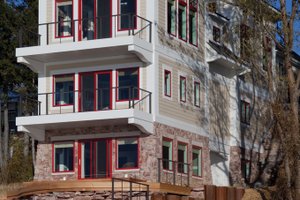

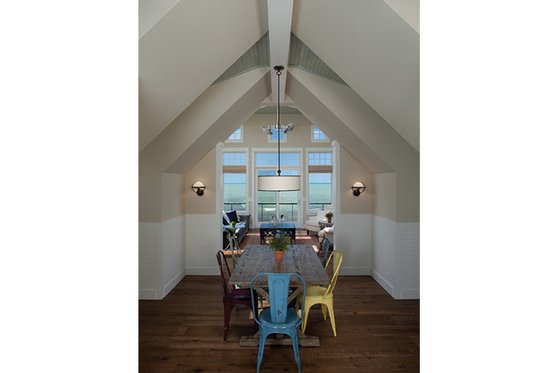

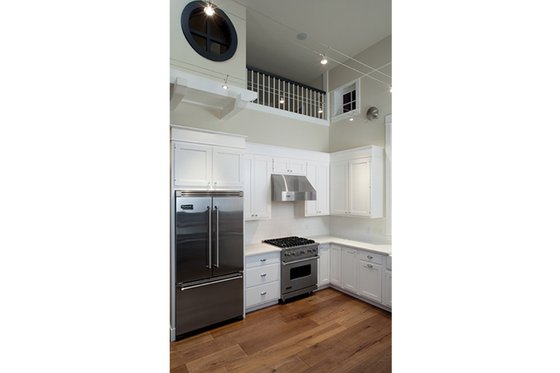

Just 20 feet wide, this remarkable home from Visbeen Architects (winner of awards at the 2011 and 2012 American Residential Design Awards) presents a solution to a common limitation in waterfront property: a narrow lot. This home makes up for in height and length, maximizing the available space and taking full advantage of what are sure to be expansive views from each of its three stories. Featuring porthole windows and outdoor upper decks, the Pine Cliff exudes a distinctly nautical air, perching on its steep grade like a great docked ship. The entry level functions as the main living space, featuring a half bath, foyer, kitchen, dining room, and glass-walled living room. One floor up is the laundry, bunk room, and sunny master suite. The lower level is home to another bedroom suite and office space. Across the way, through the covered patio alcove is the lower-level family room, complete with kitchenette and walkout access to the water.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

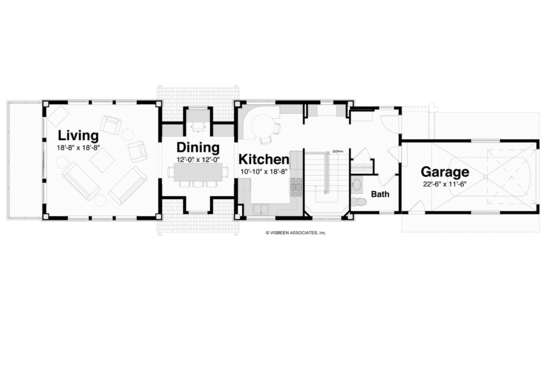

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

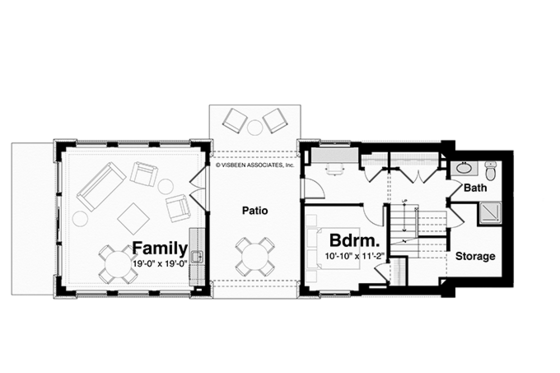

Floor Plan - Lower Floor

Reverse

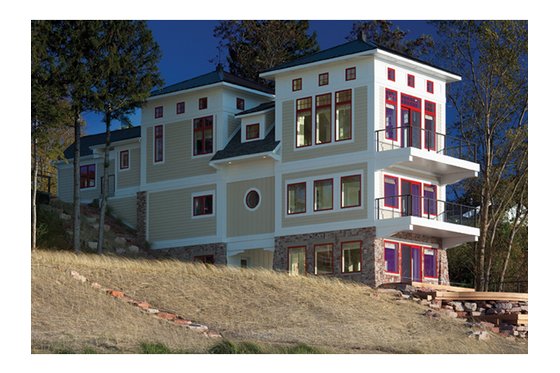

Floor Plan - Other Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 2
Garages: 1

Dimension

Depth : 83'
Height : 42' 8"
Width : 20'

Area

Total : 2990 sq/ft
Basement Living: 825 sq/ft height 9'
First Floor: 1048 sq/ft height 9'
Second Floor: 1117 sq/ft height 15'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x8

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Mud Room
Open Floor Plan
Upstairs Laundry
Vaulted / Cathedral Ceilings

Garage Features

Front Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck

Rooms

Bedroom 3:

width 10' 10" x depth 11' 2"

Bunk:

width 10' x depth 11' 2"

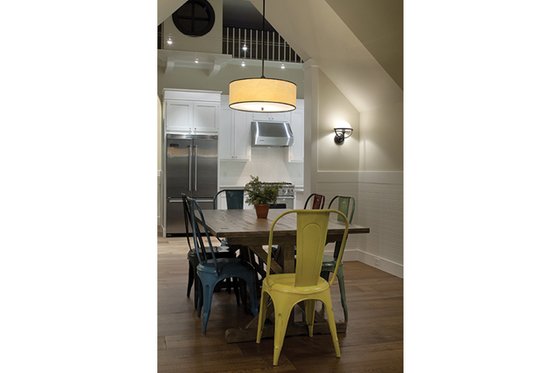

Dining:

width 12' x depth 12'

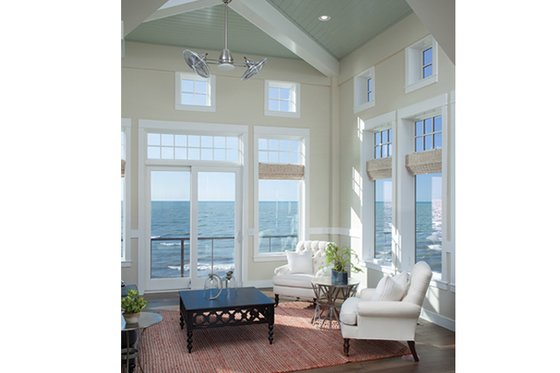

Family Room:

width 19' x depth 19'

Garage:

width 22' 6" x depth 11' 6"

Kitchen:

width 10' 10" x depth 18' 8"

Living Room:

width 18' 8" x depth 18' 8"

Master Bedroom:

width 18' 10" x depth 19'

What's included in this plan set


See a sample plan set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1495.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$3495.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
