Plan Description


The surprise in this 4 bedroom 5 bath Mediterranean style plan is right behind the wrought-iron front gate: a pool courtyard with a loggia leading to the front door. The great room, dining area, and guest suite surround the patio, offering easy access for seamless indoor-outdoor living. A second floor features two guest suites and a loft, plus a balcony and deck that offer views of the courtyard from two different perspectives. The master suite has an elegant foyer, and a study opening to a small lanai.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

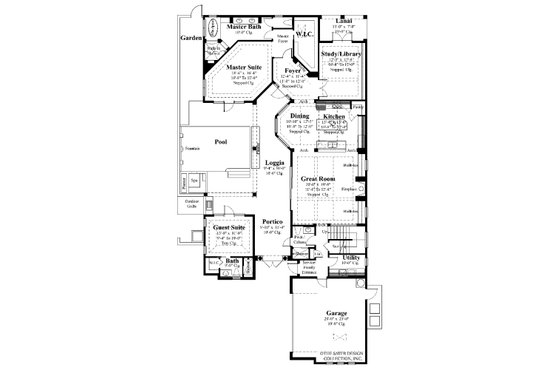

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

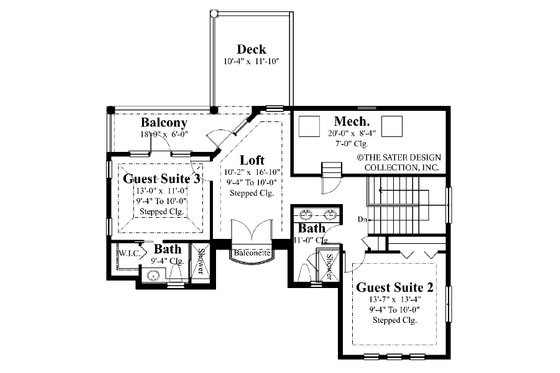

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 5
Stories: 2
Garages: 2

Dimension

Depth : 95' 8"
Height : 26'
Width : 45'

Area

Total : 3031 sq/ft
Deck: 140 sq/ft
First Floor: 2254 sq/ft
Garage: 484 sq/ft
Porch: 387 sq/ft
Second Floor: 777 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco
Framing : Block/2x6

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Rooms

Balcony:

width 18' 6" x depth 0"

Den:

182 sq/ft width 11' 8" x depth 15' 8"

Dining Room:

135 sq/ft width 10' 10" x depth 12' 6"

Garage:

460 sq/ft width 20' x depth 23'

Great Room:

393 sq/ft width 20' x depth 19' 8"

Guest Suite 1:

143 sq/ft width 13' x depth 11'

Guest Suite 2:

181 sq/ft width 13' 7" x depth 13' 4"

Guest Suite 3:

143 sq/ft width 13' x depth 11'

Kitchen:

173 sq/ft width 13' 4" x depth 13'

Lanai:

91 sq/ft width 13' x depth 7'

Loft:

171 sq/ft width 10' 2" x depth 16' 10"

Loggia:

335 sq/ft width 9' 4" x depth 36'

Master Bedroom:

293 sq/ft width 18' 4" x depth 16'

Master Foyer:

139 sq/ft width 12' 4" x depth 11' 4"

Mechanical/Equipment Room:

166 sq/ft width 20' x depth 8' 4"

What's included in this plan set


See a sample plan set

This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.

Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: This designer's most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.
