Plan 1066-43

Photographs may show modified designs.
Plan 1066-43

Key Specs


3629
sq ft

3
Beds

2
Baths

2
Floors

2
Garages

Plan Description


Modern style single-family home with closed floor plan and two garages
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

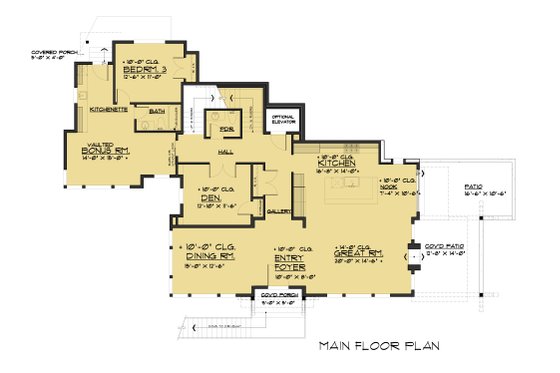

Floor Plan - Main Floor Plan

Reverse

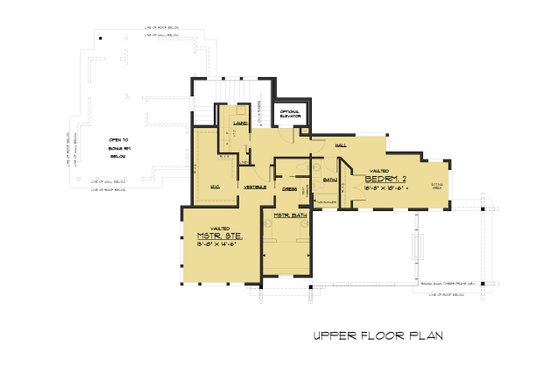

Floor Plan - Upper Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 2

Dimension

Depth : 48' 4"
Height : 36' 4"
Width : 83' 4"

Area

Total : 3629 sq/ft
Garage : 437 sq/ft
Lower Floor : 440 sq/ft
Main Floor : 2054 sq/ft
Porch : 44 sq/ft
Storage : 92 sq/ft
Upper Floor : 1135 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Upper floor ceiling is vaulted, and the family room on the main floor has 14 ft ceilings
Garage Ceiling : 9'
Main Ceiling : 10'

Roof

Primary Pitch : 1.5/12
Roof Framing : Raftors
Roof Load : 25
Roof Type : Shed
Secondary Pitch : 2/12

Exterior Wall Framing

Exterior Wall Finish : Siding and Panels
Framing : 2X6
Insulation : R21

Bedroom Features

Lower Level Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Upstairs Laundry
Wet Bar
Wine Cellar

Garage Features

Front Entry Garage
Garage Under
Side Entry Garage
Tandem Garage

More

Elevator

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1329.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1434.00
5 printed plan sets mailed to you.

8 Copy Set

$1539.00
8 printed plan sets mailed to you.

Reproducible Set

$1539.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$3750.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1224.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Walk Out Basement

$0.00
Ideal for a sloping lot, lower level with outdoor access.

Slab

$300.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$350.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$125.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$350.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
