Plan 927-1012

Photographs may show modified designs.
Plan 927-1012

Plan Description

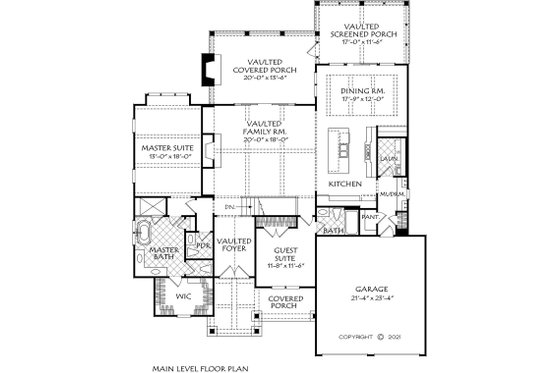

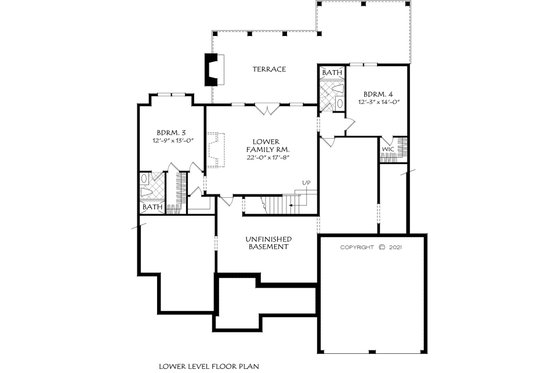

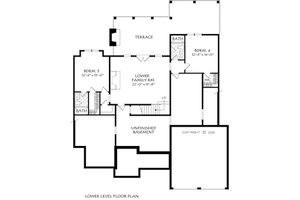

A timber framed gable is the focal point that leads one to the front door, inviting everyone inside for a visit. Fieldstone and textured siding create an elevation design that will be suitable for building sites from urban to rural. This design is meant for a sloping lot with an exposed terrace level such as a lake front, hill side or golf course. The main level provides the owner's with one level living perfect for retirees. The open concept kitchen, living and dining areas mesh perfectly for today's life style. The master suite is located to the rear to take full advantage of views that are available. The master bath is fully appointed with a soaking tub, large shower and ample closet space. There is also a guest suite on the main floor, located for privacy and convenience. The guest room would make a great home work space as well. The mudroom, laundry room and pantry provide storage and convenience for a busy family. The terrace level contains two additional bedrooms each with a connected bath and walk-in-closet. A large family room is also located on the lower level for entertaining family and friends.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 1
Garages: 2

Dimension

Depth : 70' 5"
Height : 25'
Width : 58'

Area

Total : 3072 sq/ft
Garage : 520 sq/ft
Lower Floor : 1059 sq/ft
Main Floor : 2013 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'
Main Ceiling : 9'

Roof

Primary Pitch : 10:12
Roof Framing : conventional
Roof Load : 20 lb live load
Roof Type : shingle

Exterior Wall Framing

Exterior Wall Finish : siding/stone
Framing : 2x4 wood

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch

More

Additional Half Bath
Suited For Vacation Home

What's included in this plan set


See a sample plan set
  • Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
  • All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
*See important information before purchasing
