Plan 413-100

Photographs may show modified designs.
Plan 413-100

Key Specs


3091
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

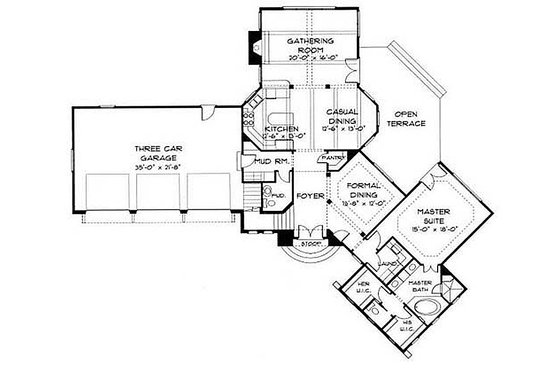

Floor Plan - Main Floor Plan

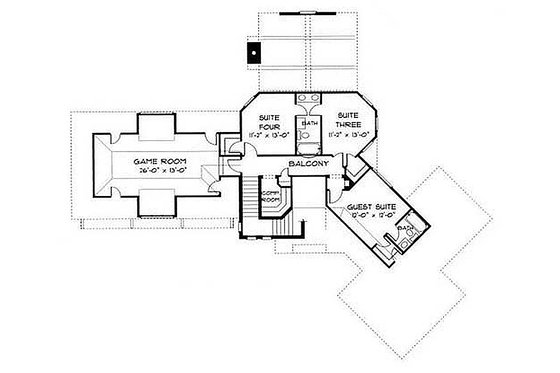

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 3

Dimension

Depth : 73' 2"
Height : 36'
Width : 87' 9"

Area

Total : 3091 sq/ft
First Floor: 1833 sq/ft
Second Floor: 1258 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 14:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft

Garage Features

Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Rooms

Bedroom 3:

145 sq/ft width 11' 2" x depth 13'

Bedroom 4:

145 sq/ft width 11' 2" x depth 13'

Computer room:

width 6' 2" x depth 8'

Dining Room:

164 sq/ft width 13' 8" x depth 12'

Garage:

758 sq/ft width 35' x depth 21' 8"

Gathering Room:

320 sq/ft width 20' x depth 16'

Guest Suite:

144 sq/ft width 12' x depth 12'

Kitchen:

162 sq/ft width 12' 6" x depth 13'

Laundry:

width 6' x depth 8'

Master bath:

width 12' x depth 11'

Master Closet #1:

width 6' 2" x depth 7'

Master Closet #2:

width 6' 2" x depth 7'

Master Suite:

270 sq/ft width 15' x depth 18'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1800.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2600.00
5 printed plan sets mailed to you.

CAD Set

$2600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$200.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$400.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$600.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
