This cabin home is designed to offer privacay from the bustling street and be open to the rear in order to enjoy the water view. A gallery foyer is the perfect place for an art collection. Vaulted ceilings and abundant glass make the home feel spacious and bright. A large two story covered porch extends the home to the yard with a sprial staircase and allows ample seating for outdoor entertaining. The lower level walk out showcases a large family room, bar area, exercise room, and additional guest rooms.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

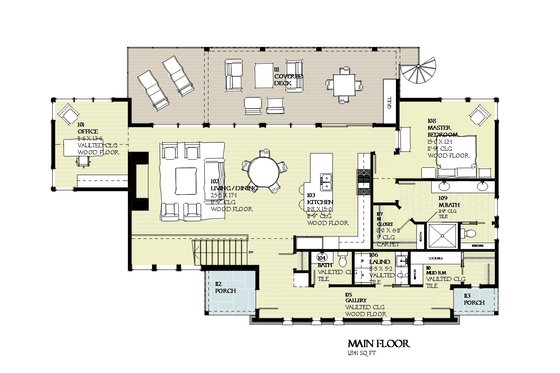

Floor Plan - Main Floor

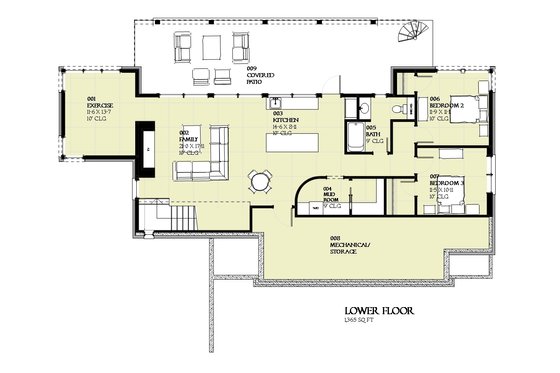

Floor Plan - Lower Floor
Full Specs & Features
Depth : 42' 6"
Height : 32' 4"
Lower Floor : 1365 sq/ft
Main Floor : 1841 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 10'
Main Ceiling : 12'
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Wrap Around Porch
Suited For Vacation Home
