Explore the many amenities of this European style floor plan . Included are a large outdoor living terrace complete with an outdoor fireplace, a family-media room, huge walk-in closet in the master suite, and divided garages wrapping a motor court -- just to name a few!
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

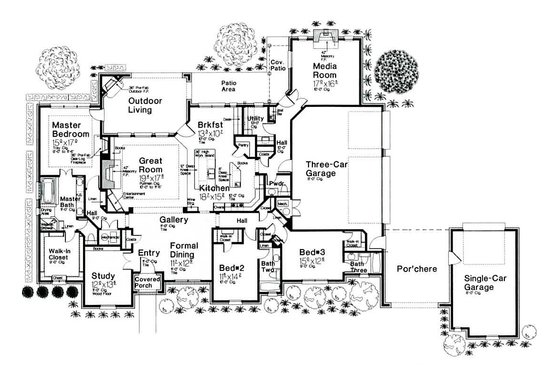

Floor Plan - Main Floor
Full Specs & Features
Depth : 72' 11"
Height : 34'
First Floor: 3214 sq/ft
Garage: 1147 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : 11' ceiling in Study, Entry, Dining Room and Gallery. 10' to 11'6" tray ceiling in Great Room. 9' in Bedroom 3 and Hall.
Main Ceiling : 10'
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Carport Porte Cochere
Side Entry Garage
162 sq/ft width 11' 6" x depth 14' 2"
187 sq/ft width 15' x depth 12' 6"
140 sq/ft width 13' 3" x depth 10' 7"
width 5' x depth 15'
147 sq/ft width 11' 7" x depth 12' 9"
width 7' x depth 4'
Garage 3 car:
653 sq/ft width 22' x depth 29' 8"
338 sq/ft width 19' 4" x depth 17' 6"
281 sq/ft width 18' 7" x depth 15' 2"
255 sq/ft width 15' x depth 17'
width 10' x depth 12'
279 sq/ft width 17' x depth 16' 5"
width 21' x depth 14' 6"
width 15' x depth 18'
width 16' x depth 24'
162 sq/ft width 12' x depth 13' 6"
width 18' x depth 7' 6"
width 5' 8" x depth 9'
