Plan 1010-40

Photographs may show modified designs.
Plan 1010-40

Plan Description


Spacious and relaxed, this home is full of details designed to make everyday living easier. For example, check out all the storage on the way in from the three-car garage: it's easy to hang up coats in the walk-in closet, stash groceries in the pantry, and throw muddy shoes in the big utility room (there's even a craft table in here). Fireplaces add cozy ambiance to the great room, the master suite, and the study. Guests can nibble on snacks at the kitchen's island. At night, relax in the master suite's tub or big shower, or just kick back in the private sitting room. Three more bedrooms (one of them a large suite) rest upstairs, with 280 square feet of attic space nearby.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

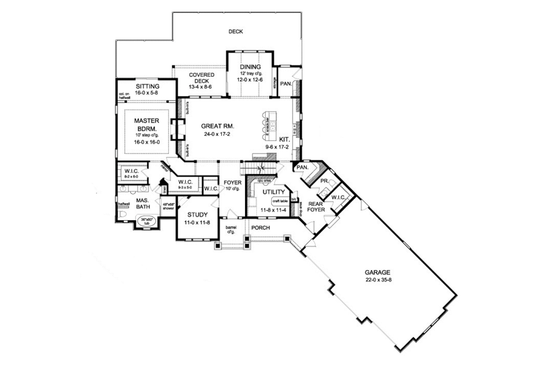

Floor Plan - Main Floor Plan

Reverse

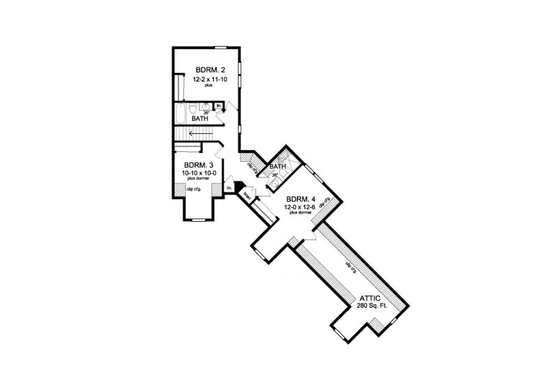

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 93' 2"
Height : 31'
Width : 93' 7"

Area

Total : 3247 sq/ft
Bonus: 280 sq/ft
Deck: 667 sq/ft
First Floor: 2321 sq/ft height 9'
Garage: 858 sq/ft height 9'
Porch: 131 sq/ft
Second Floor: 926 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Shingle/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Open Floor Plan
Storage Area
Workshop

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch
Deck

Rooms

Bedroom 2:

width 12' 2" x depth 11'

Bedroom 3:

width 10' 10" x depth 10'

Bedroom 4:

width 12' x depth 12' 8"

Bonus:

280 sq/ft

Deck:

width 13' 4" x depth 8' 6"

Dining:

width 12' x depth 12' 6"

Garage:

858 sq/ft width 22' x depth 35' 8"

Great Room:

width 24' x depth 17' 2"

Kitchen:

9 sq/ft width 7' 5" x depth 2'

Master Bedroom:

width 16' x depth 16'

Master Sitting:

width 16' x depth 5' 8"

Study:

width 11' x depth 11' 8"

Walk in closet:

width 8' 2" x depth 6'

Walk in closet:

width 9' 3" x depth 5'

What's included in this plan set


See a sample plan set
All plans are drawn at ¼” scale or larger and include :
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

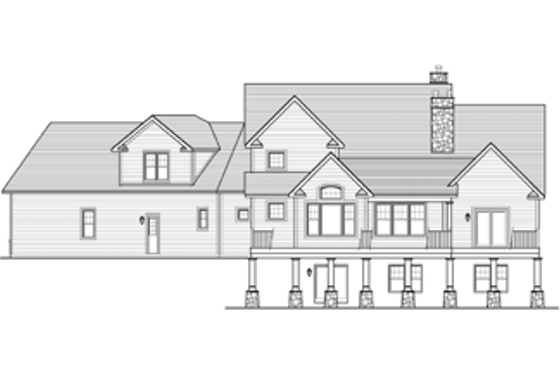

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
  • CAD Plans are in AutoDesk Architecture.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$2000.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$2000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$4000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1200.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Other Plans By This Designer

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
