Photographs may show modified designs.
Plan 520-8

Key Specs


3338
sq ft

4
Beds

3
Baths

2
Floors

0
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

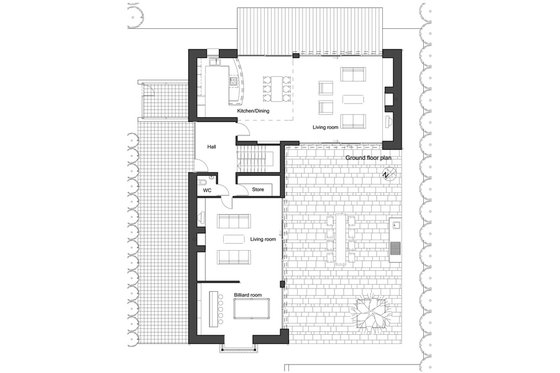

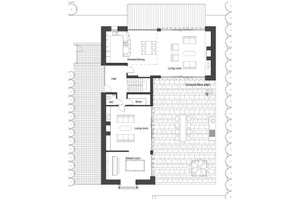

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 0

Dimension

Depth : 71'
Height : 28'
Width : 62'

Area

Total : 3338 sq/ft
Main Floor : 1810 sq/ft
Upper Floor : 1528 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 9'

Exterior Wall Framing

Exterior Wall Finish : stone
Framing : Concrete block
Icf

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Storage Area
Unfinished Future Space
Upstairs Laundry

Lot Characteristics

Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

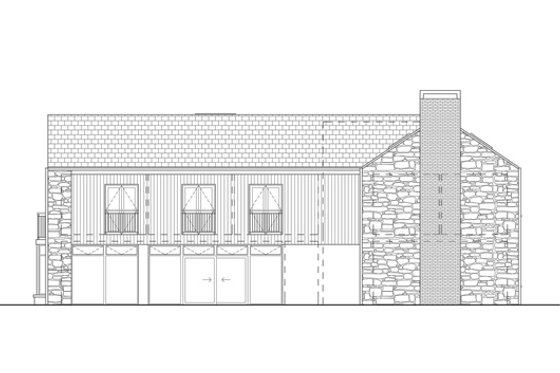

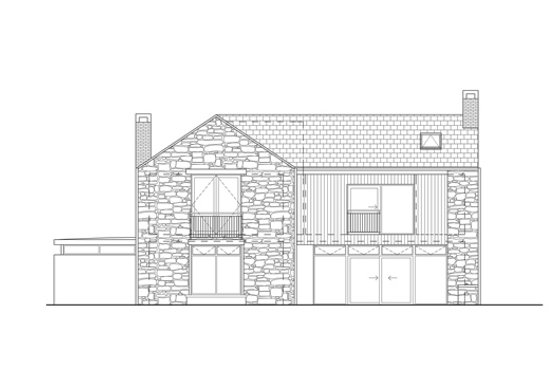

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$3900.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$3900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer - Frank McGahon

Frank McGahon - Houseplans.com
“What we're trying to do is help clients make their dream homes a reality. People look at beautiful houses in magazines and on websites and imagine that they're out of reach. We strongly believe that that's not the case. Even on tighter budgets there are a lot more possibilities than people often realize and with the right design it is possible to achieve the house of your dreams.”

Frank McGahon is a fourth generation architect, following his great grandfather, grandfather and father into practicing architecture in the town of Dundalk, equidistant between Dublin and Belfast. After graduating from the School of Architecture, University College Dublin in 1989 he worked in London and Dublin before returning to work for his father in Dundalk in 1992, eventually taking over the practice and establishing McGahon Architects in 2001.

While the practice has a tradition and reputation extending back a century it has a forward-looking ethos and a reputation for high quality house design with a particular emphasis on maximizing light and space throughout the house, using the configuration of the house to form private, sunny, sheltered spaces for outdoor living and always considering the variety of ways in which people inhabit and use the house. The practice's house designs range from small to large, from stepped sites to flat and from tight urban lots to expansive rural sites holdings incorporating regional influences with crisp contemporary detailing.
